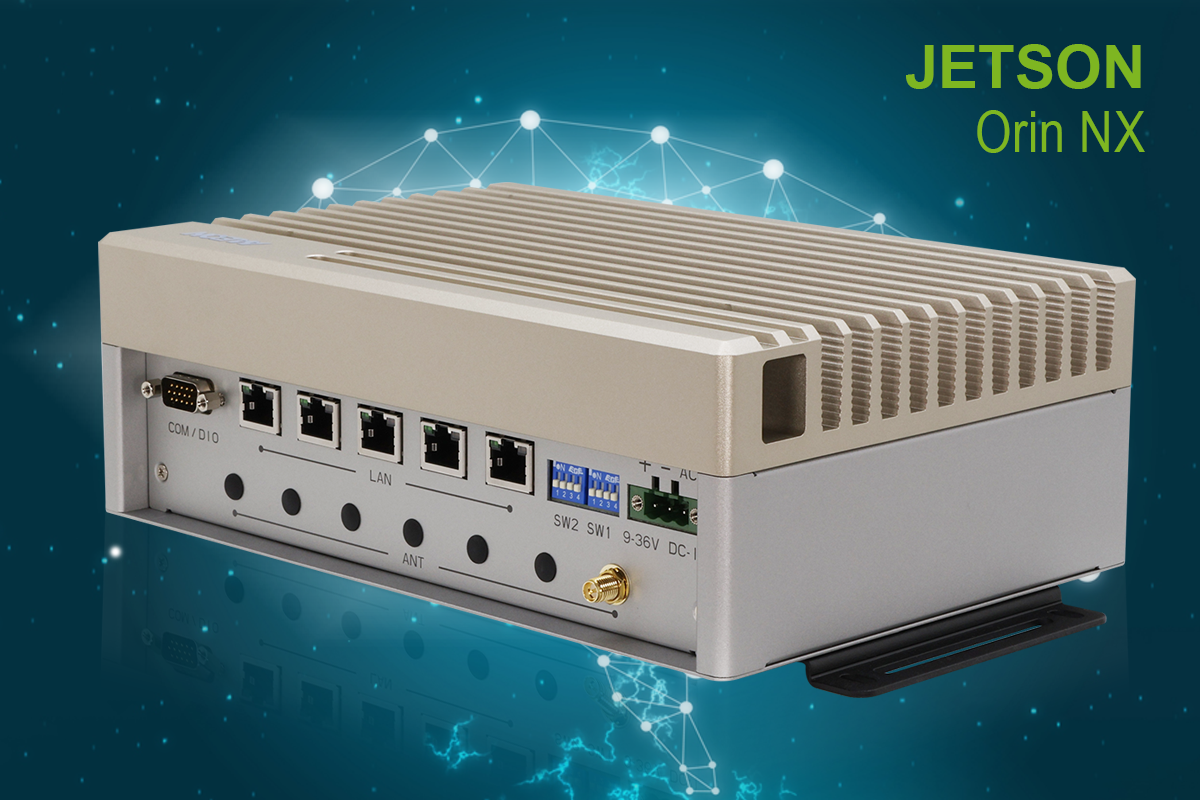

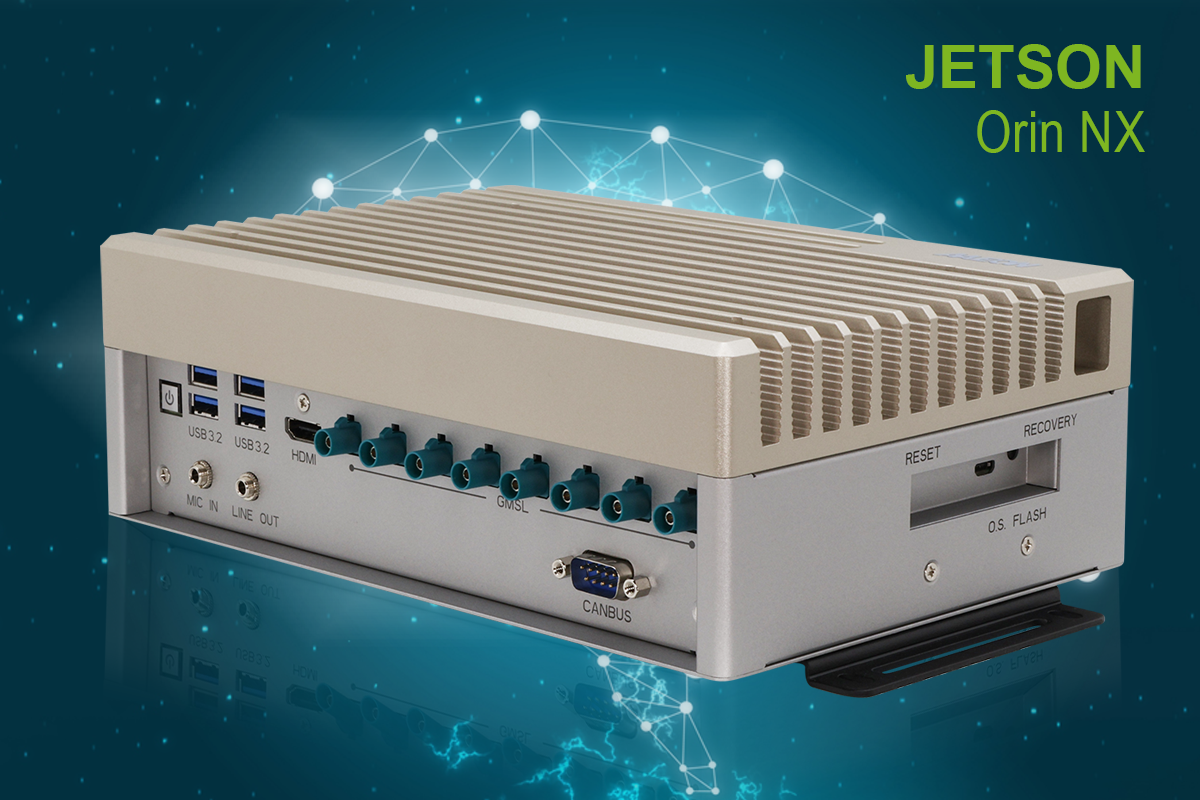

BOXER-8655AI
Edge AI Fanless Embedded AI System with NVIDIA® Jetson Orin NX
Features
- NVIDIA® Jetson Orin NX
- GMSL2 with FAKRA Connectors x8, Giga LAN x5
- TPM, 9-Axis Sensor, GPS
- 9V ~ 36V DC-in with ACC Ignition Delay On/Off
- Military Standard Vibration and Shock, E-Mark Certified
The E-Mark certified BOXER-8655AI pairs a plethora of high-speed interfaces with the exceptional AI inference performance of the NVIDIA® Jetson Orin™ NX to get in-vehicle and smart mobility solutions on the road.
Ruggedized for the demands of automotive applications, but with a sophisticated selection of interfaces through which to leverage elite sensor and camera technologies, the BOXER-8655AI perfectly balances toughness with agility for any scenario.

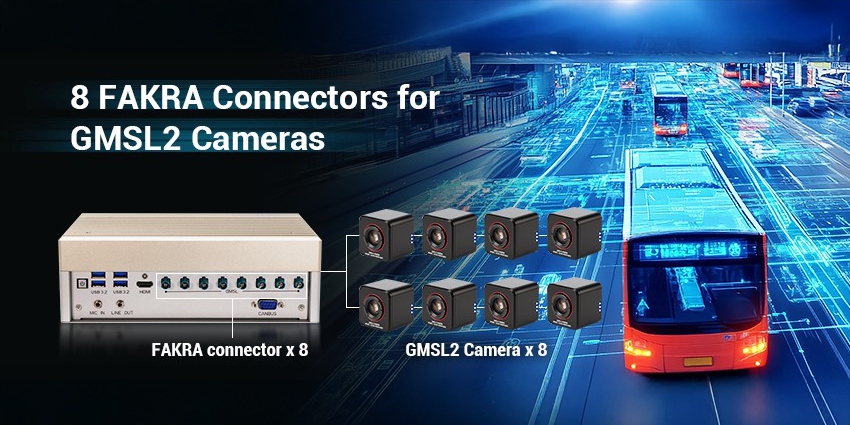

8 FAKRA Connectors for GMSL2 Cameras
Armed with eight FAKRA connectors for GMSL2 camera installation, the BOXER-8655AI grants low latency and high frame rates for synchronized, multi-camera support, ideal for AI-assisted automotive solutions requiring collision warning or pedestrian detection functions. This is bolstered by the system’s 9-Axis sensor and GNSS support, which can be leveraged for a range of fleet management and driver behavior analysis applications.
Full-Spectrum Vehicle Connectivity
Joining the BOXER-8655AI’s support for eight GMSL2 cameras are a host of robust interfaces designed to facilitate vehicle-system synchronicity. M.2 E and B-Key slots open the door to Wi-Fi and 5G/LTE module installation, while radar, LiDAR, or other high-speed sensors are supported via five RJ-45 Ethernet ports. Further, the system’s DB-15 port, which offers RS-232/422/485 and a programmable DIO, can host an array of peripheral tools for more complex scenarios.
More Compact & Rugged than Ever
Despite measuring in at just 246mm x 164.2mm x 88.8mm, the BOXER-8655AI is built to handle the demands of even the harshest in-vehicle deployments while maintaining optimum performance. Its superior ruggedness is further illustrated by a wide 9V to 36V power input range with ignition delay on/off function, MIL-STD-810G standard tolerance for both shock and vibration, E-Mark certification, and an extended -15°C to 70°C operating temperature range.
| System | |
| AI Accelerator | NVIDIA® Jetson Orin™ NX |
| CPU | Orin NX 8GB : 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 Orin NX 16GB : 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 +4MB L3 |
| System Memory | Orin NX 8GB : 8GB LPDDR5 Orin NX 16GB : 16GB LPDDR5 |
| Storage Device | M.2 2280 M-Key x 1 (NVMe) 2.5” SATA Driver Bay x 1 |
| Display Interface | HDMI 1.2 x 1 |
| Ethernet | RJ-45 for GbE LAN x 5 |
| I/O | GMSL2 x8 with FAKRA Connectors DB-9 x1 for CANBus FD DB-15 x1 for RS232 (Rx/Tx) / RS422 / RS485, Programmable DIO x8 External SMA Antenna x7 USB Type-A x4 for USB 3.2 Gen 2 Micro USB x1 for OS Flash Mic-In & Line-Out x1 Power Button x1, Reset Button x1, Recovery Button x1 |
| Expansion | M.2 2230 E-Key x 1 (Wifi/BT) M.2 3042/3052 B-Key x 1 (LTE/5G) (USB 2.0,USB3.0) M.2 2280 M-Key x 1 (NVMe) 2.5” SATA x 1 |
| Indicator | Power LED |
| OS Support | Linux (NVIDIA JetPack™ 6.x and up) |
Power Supply | |
| Power Requirement | 3-pin Terminal Block x 1 for 9V~36V ACC Ignition Delay On/Off |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 9.68 “ x 6.46 “ x 3.49” (246.0 mm x 164 .2 mm x 88.8 mm) |
| Gross Weight | 7.9 lbs (3.6Kg) |
| Net Weight | 6.2 lbs (2.8Kg) |
Environmental | |
| Operating Temperature | 5°F ~ 158°F (-15°C ~ 70°C with 0.7 m/s airflow) |
| Storage Temperature | -40˚F ~ 185˚F (-40˚C ~ 85˚C) |
| Storage Humidity | 5 ~ 95% @ 40˚C, non-condensing |
| Anti-Vibration | MIL-STD-810G, 514.6C Procedure 1, Category 4 Trucker/Semitrailer on US highway (Figure 514.6C-1-Category 4-Common carrier) |
| Anti-Shock | MIL-STD-810G, Method 516.6, Procedure I, flight vehicle equipment |
| Certification | E-Mark, CE/FCC Class A |
