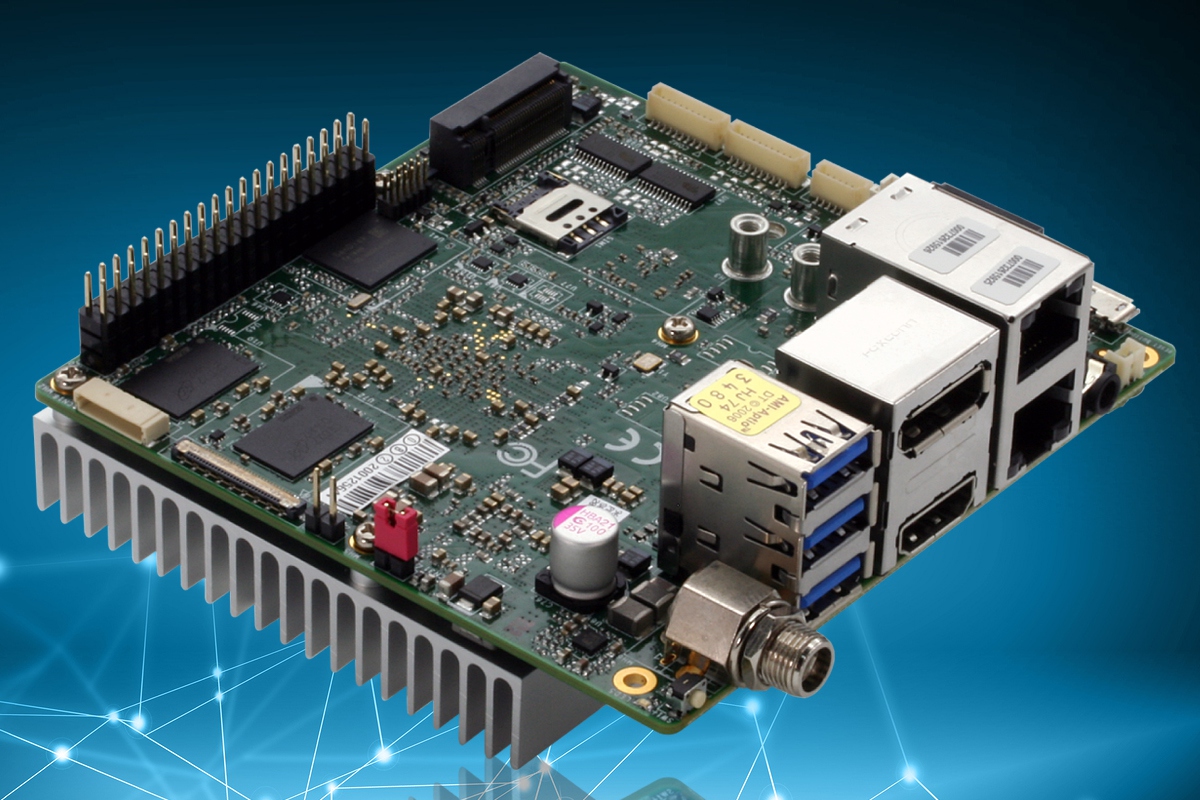

UP Squared Pro

UP Squared Pro

Powered by Intel® processors formerly Apollo Lake, the UP Squared Pro brings a range of features to leverage new technologies and accelerate Edge deployment.


フィーチャ

  • UP Squared Pro with the powerful Intel® Apollo Lake, up to 2.5GHz (Celeron® N3350 / Pentium® N4200 / Atom® x7-E3950)
  • Intel® HD Graphics
  • 1x Passive Heatsink, 1x RTC Battery
概要

UP Squared Pro は、強力な Intel プラットフォーム (旧名 Apollo Lake) をベースにしており、当社の幅広い UP 製品に新たに追加された製品です。産業用に構築されており、既存のモジュールまたは次世代 AI モジュールへの拡張機能を備えた、次世代の産業オートメーションおよび AI ソリューションを実現できます

5G 接続で産業オートメーションと AI ビジョンの未来を解き放ち、ソリューションを PRO レベルに引き上げます。

拡張ボードは M.2 2230、M.2 2280、および M.2 3052 で利用可能で、究極のエッジ ソリューションとしてプロジェクト固有の要件に対応するオプションを提供します。複数のシリアル ポート、イーサネット ポート (TSN 付き)、5G サポート、オーディオ ポート、その他のさまざまな機能を備えたボードの産業用セットアップにより、オートメーション、ロボティクス、ドローン、マシン ビジョン、インターネットなどのさまざまなドメインや製品に最適なソリューションになります。物事の。

仕様
UP Squared Pro

UP board version

UP Squared Pro

SoC

Intel® Celeron® Duo Core N3350 (up to 2.4 GHz)

Intel® Pentium®Quad Core N4200 (up to 2.5 GHz)

Intel Atom® Quad Core x7-E3950 Processor (up to 2.0 GHz)

Processor TDP 6W – 12W depends on CPU
VPU Optional via M.2 2280
Graphics

Intel® HD Graphics 500 for Intel® Celeron® N3350

Intel® HD Graphics 505 for Intel® Pentium® N4200 / Intel Atom® x7-E3950

FPGA Intel® FPGA Altera MAX 10
System memory 2GB, 4GB, 8GB
Storage capacity 32GB, 64GB
BIOS UEFI
Compatible operating system Microsoft Windows 10 full version, Linux ( Ubuntu, Yocto)
Power

12V~24V DC-IN (lockable connector)

1x Power Button / LED

Power supply type AT/ATX
Power consumption (typical) 20W
Operating temperature 0°C-60°C (32°F ~ 140°F)
Storage Temperature -40°C ~ 80°C (-40°F ~ 176°F)
Operating humidity 0% ~ 90% relative humidity, non-condensing
Certification CE/FCC Class A
RTC YES
HS code 8473302000
Cooling Fanless
Country of Origin Taiwan
Longevity 2031

Display

HDMI 1 (HDMI 1.4b)
DP 1x DP 1.2 (4K@60hz)
MIPI DSI/ eDP 1 x eDP

I/O

Audio 1x Mic in, 1x Line out
USB

3x USB 3.0 Type A

1x USB 3.0 OTG

UART 2 x UART (Tx/Rx) debug port (pin header)
Serial port 2x RS232/422/485
HDD interface 1x SATA 3.0
Expansion Slot

1x M.2 E key 2230

1x M.2 M key 2280

1x M.2 B key co-lay 3042/3052

SIM slot 1
Others Infineon TPM SLB9670 on board

Connectivity

Ethernet 2x GbLAN (Intel i210 AT) support TSN
WiFi Optional (via M.2 2230) — Intel® AC9260 card
Bluetooth Optional (via M.2 2230) — Intel® AC9260 card
LTE/4G/ 5G Optional (via M.2 3042/3052 B co-lay)

Package

Net weight 219 gm
Gross weight TBC
Product dimension 101.6 x 101.6mm (4″ x 4″)
ダウンロード
パッキングリスト、詳細仕様、その他の製品情報については、データセットまたはユーザーマニュアルをダウンロードしてください。
