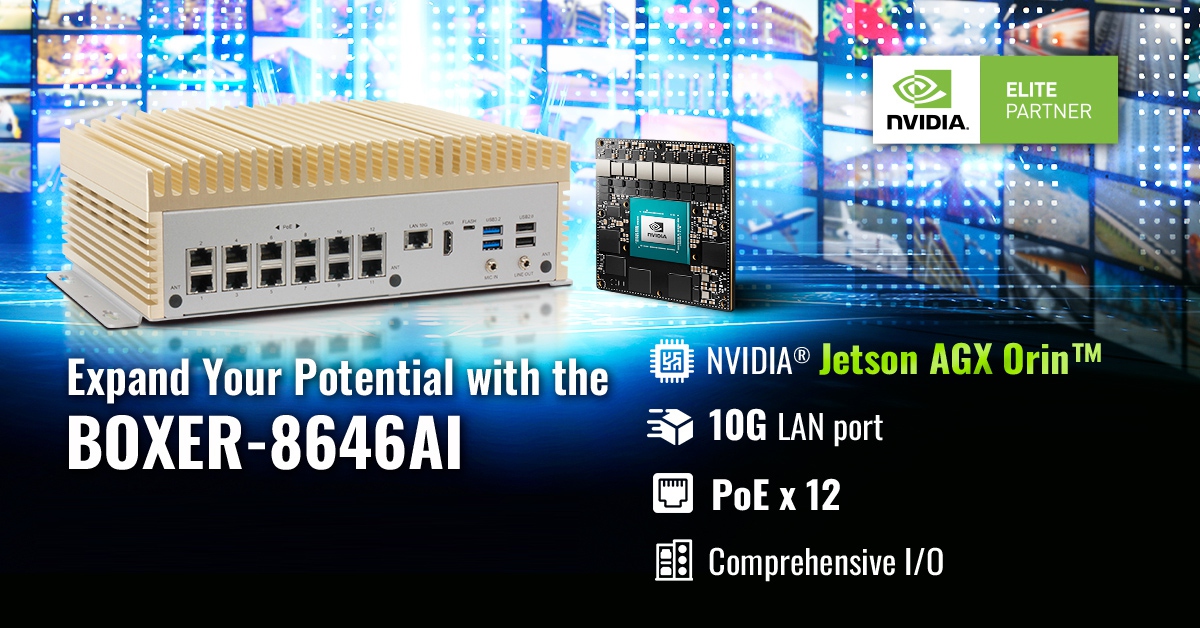

BOXER-8646AI

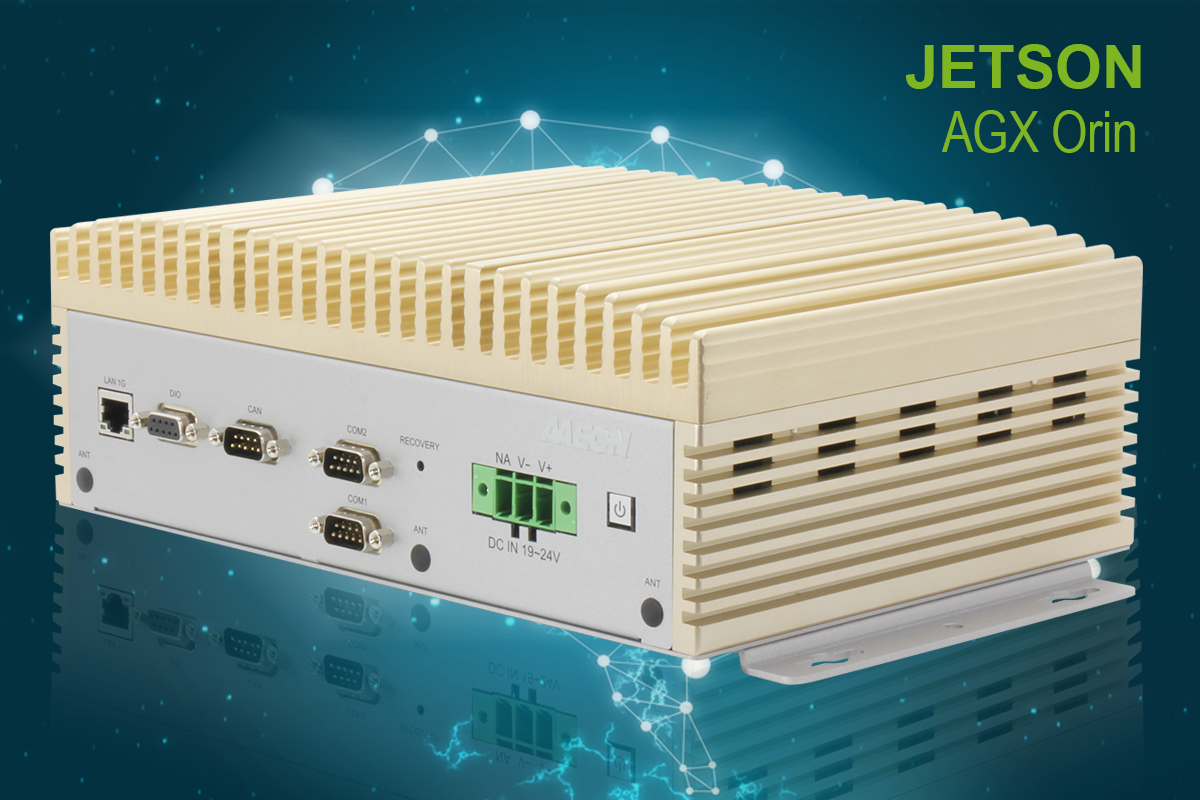

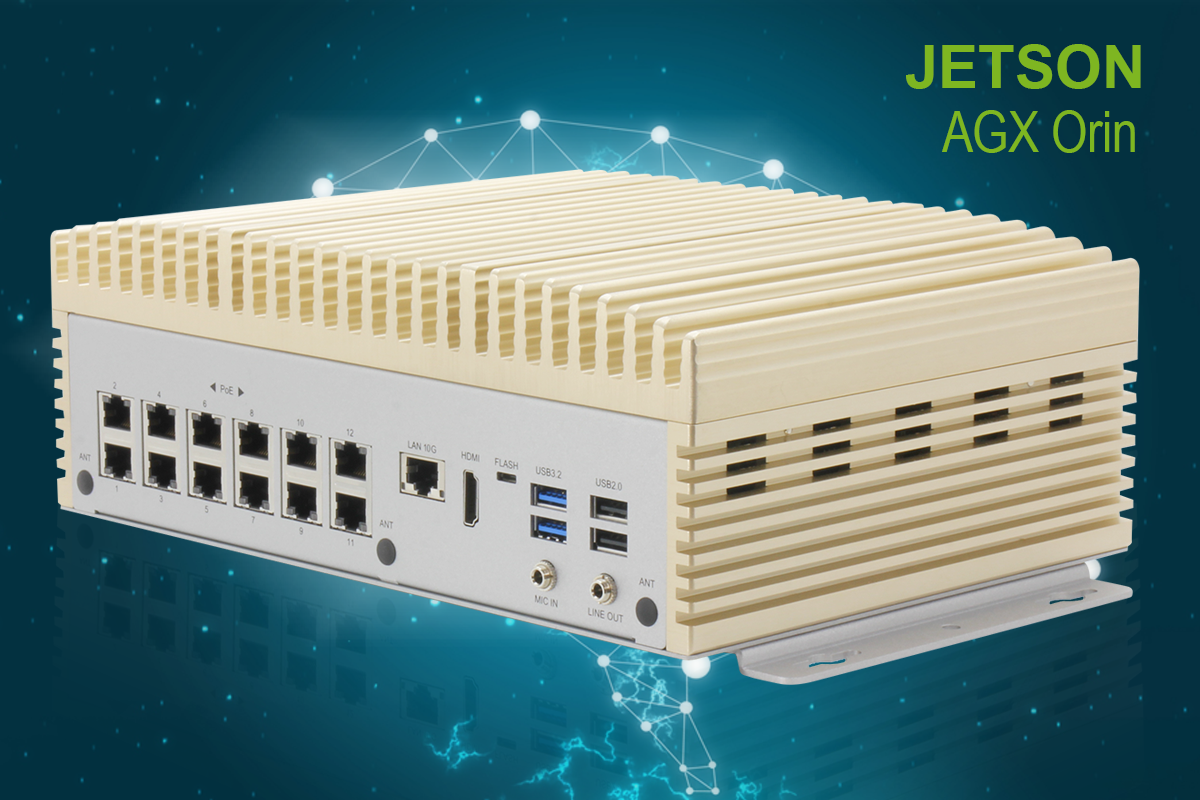

AI@Edge Fanless PoE Embedded AI System with NVIDIA® Jetson AGX Orin™
기능
- NVIDIA® Jetson AGX Orin™
- PoE/PSE GbE LAN x 12
- 10G LAN x 1 and Giga LAN x 1
- Multi-expansion: M.2 E Key / M.2 B Key / M.2 M Key
- CANBus / COM / DIO
기록을 깨는 세계 최고의 BOXER-8646AI는 10G LAN을 통해 데이터 전송 속도가 10배, AI 성능이 6배, NVIDIA® Jetson AGX Orin™을 통해 최대 200 TOPS를 제공하여 이전 모델과 차별화됩니다.
12개의 PoE 및 10G LAN 포트를 호스팅하는 NVIDIA Jetson AGX Orin으로 구동되는 유일한 시스템인 BOXER-8646AI는 크로스 마켓 AI 에지 솔루션에 사용할 수 있는 커넥터의 품질과 양을 모두 높입니다. 다양한 확장 옵션과 포괄적인 I/O를 갖춘 BOXER-8646AI는 모든 애플리케이션에서 가능한 기능을 확장, 향상 및 다양화합니다.

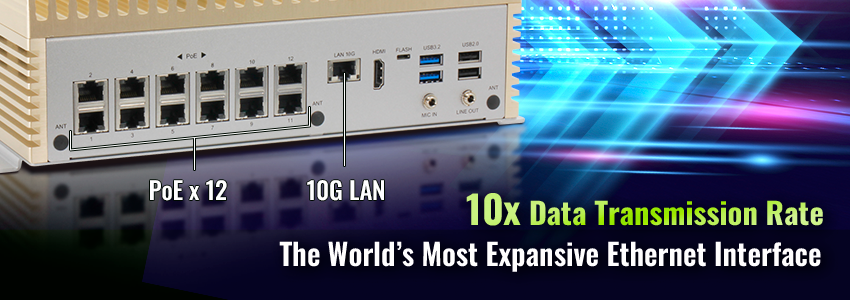

Equipped with 12 PoE LAN ports, the BOXER-8646AI has the world’s most expansive ethernet interface, tripling the capacity of previous generations of Box PCs powered by NVIDIA Jetson SoMs. This record-breaking design enables users to power a greater number of high-quality peripheral cameras for any edge AI application, including smart safety and traffic management solutions. Complimenting this is the BOXER-8646AI’s exceptional data transmittance speed, with 10G LAN providing connective synergy like never before.
The BOXER-8646AI’s record-breaking interface serves to augment the ingenuity of the NVIDIA® Jetson AGX Orin™. The system’s 12 PoE LAN ports channel up to 200 TOPS of AI performance, marrying unparalleled acceleration with preeminent power. As a consequence, the BOXER-8646AI offers not only greater scalability for solutions like smart parking and ANPR, but also substantially more power and sophistication.

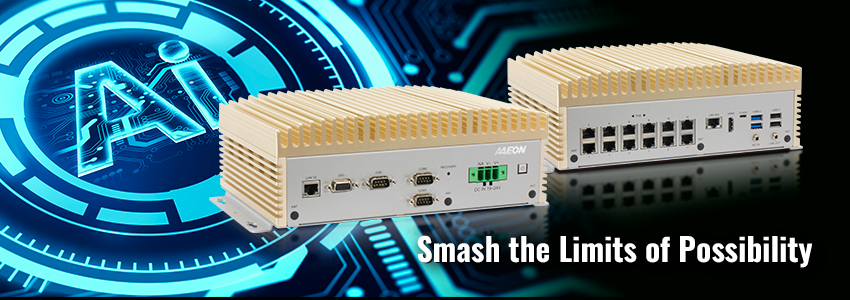

Adding to a record-breaking PoE interface and tremendous computing power, the BOXER-8646AI is designed to expand the performance and reach of your project in every aspect of its design, including a wide -20°C ~ 50°C temperature range for greater deployment options. Further, LPDDR5 system memory, CAN Bus, and RS-232/422/485 support provide fast and reliable functionality for edge applications, while expansion options such as NVMe, Wi-Fi, and LTE remove the limits of possibility and make the BOXER-8646AI versatile, powerful, and unique.
System | |
| AI Accelerator | NVIDIA® Jetson AGX Orin™ |
| CPU | 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3 |
| System Memory | 32GB LPDDR5 |
| Storage Device | 64GB eMMC 5.1 x 1 M.2 2280 NVMe M Key x 1 |
| Display Interface | HDMI Type A x 1 for HDMI 2.0 |
| Ethernet | RJ-45 x 12 for GbE PoE/PSE (802.3af/at, MAX.:120W) RJ-45 x 1 for 10G LAN RJ-45 x 1 for Giga LAN |
| I/O | USB Type A for USB 3.2 Gen 1 x 2 |
| Expansion | M.2 2230 E Key x 1 (Wifi/BT) |
| Indicator | Power LED x 1 |
| OS Support | Linux (NVIDIA Jetpack 5.0 and above) |
Power Supply | |
| Power Requirement | 3-pin terminal block x 1 for 19V~24V |
Mechanical | |
| Mounting | Wall mount kit |
| Dimensions (W x D x H) | 10.42 " x 7.24 " x 3.67" (264.76 mm x 184.00 mm x 93.30 mm) |
| Gross Weight | 12.13lb (5.5kg) |
| Net Weight | 9.92lb (4.5kg) |
Environmental | |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C with 0.5 m/s airflow) |
| Storage Temperature | -40°F ~ 158°F (-40°C ~ 70°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3.5Grm / 5~500Hz |
| Anti-Shock | 50G peak acceleration |
| Certification | CE / FCC class A |
