BOXER-8641AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA Jetson AGX Orin
기능
- NVIDIA® Jetson AGX Orin™
- Multi-storage option: 64GB eMMC / MicroSD slot / 2.5” SATA drive bay/ M.2 2280 M Key
- Support M.2 E Key / M.2 B Key / M.2 M Key
- Support GbE LAN x 2
BOXER-8641AI는 NVIDIA Jetson AGX Orin 모듈로 구동됩니다. 컴팩트한 장치(180*136*62.1mm)에 엄청나게 풍부한 I/O를 탑재한 BOXER-8641AI에는 microSD 카드 슬롯과 함께 6개의 USB 슬롯과 2개의 기가비트 LAN 포트가 장착되어 있습니다. 이는 BOXER-8641AI가 전체 NVIDIA를 지원하는 NVIDIA JetPack™ 5.0 소프트웨어 개발 키트가 포함되어 있어 고급 자율 제조 및 스마트 농업과 같은 다양한 AI 애플리케이션을 수용할 수 있는 하드웨어 및 소프트웨어 기능을 모두 갖추고 있음을 의미합니다. CUDA® 소프트웨어 스택을 사용하면 애플리케이션 개발을 더 쉽고 빠르게 할 수 있습니다.
AAEON 고객이 얻을 수 있는 또 다른 이점은 Jetson AGX Orin 개발자 키트가 이전 모듈과 동일한 699핀 폼 팩터 모듈을 갖추고 있어 동일한 구성의 기존 NVIDIA 모듈이 로드된 AAEON 캐리어 보드와의 호환성을 보장한다는 것입니다. 이를 통해 기존 엣지 AI 애플리케이션을 업그레이드하기 위한 원활한 마이그레이션이 가능합니다.

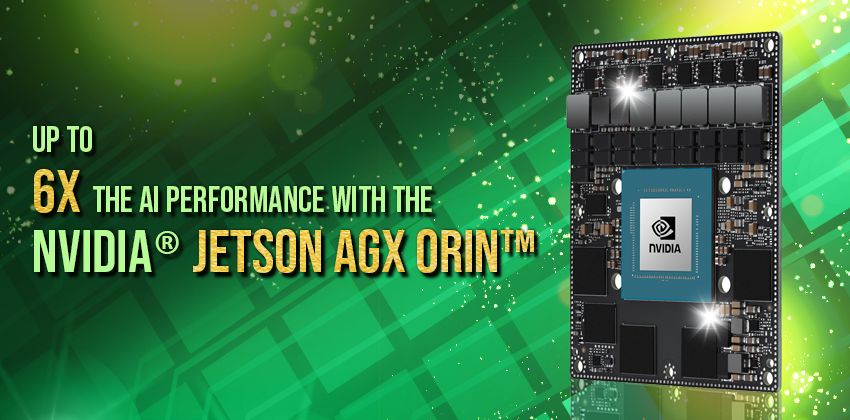

Up to 6x the AI Performance with the NVIDIA® Jetson AGX Orin™
Combining an 8-core ARM v8.2 64bit CPU and NVIDIA Ampere architecture, the BOXER-8641AI harnesses the full potential of the NVIDIA Jetson AGX Orin, possessing 1792 CUDA® and 56 Tensor cores for up to 200 TOPS, offering up to 6 times the AI performance of its predecessor. The BOXER-8641AI’s processing speed and inferencing capability subsequently shifts object detection function from GPU cards directly to the edge, simplifying the deployment of autonomous logistics vehicle applications.
Curated for Coarse Conditions
A wide temperature range of -4°F ~ 131°F (-20°C ~ 55°C) illustrates the BOXER-8641AI’s rugged deployment suitability. Further, its compact size and light weight mean its operation is not limited, enabling it to run industrial AMR and autonomous mining vehicle applications, where its object detection can offer elite logistics solutions for tight, industrial settings with low-visibility.
A More Integrated Intelligent Interface
To channel the sophistication of the NVIDIA® Jetson AGX Orin®, the BOXER-8641AI is equipped with a dense selection of features conducive to numerous vertical markets. With two GbE LAN and three USB 3.2 ports alongside 32GB LPDDR5x system memory and M.2 keys supporting 5G, Wi-Fi, and NVMe, the BOXER-8641AI ensures lightning-fast communication with peripheral hardware such as cameras and sensors which make it the ideal smart retail solution.
×
The next-gen AI Edge solutions powered by NVIDIA Jetson AGX Orin
System | |
| AI Accelerator | NVIDIA® Jetson AGX Orin™ |
| CPU |
AGX Orin 32GB: 8-core Arm® Cortex®-A78AE CPU |
| System Memory | 32GB LPDDR5 |
| Storage Device | 64GB eMMC 5.1 x 1 |
| Display Interface | HDMI Type A for HDMI 2.0 x 1 |
| Ethernet | RJ-45 for GbE LAN x 2 |
| I/O | USB Type A for USB 3.2 Gen 2 x 2 |
| Expansion | M.2 E-Key 2230 ( for Wifi/BT ) x 1 |
| Indicator | Power LED x 1 |
| OS Support | Linux ( NVIDIA Jetpack 5.0 or above ) |
Power Supply | |
| Power Requirement | 12V DC with lockable DC Jack |
Mechanical | |
| Mounting | Wall mount kit |
| Dimensions (W x D x H) | 7.09 “ x 5.35 “ x 3.11“ (180.0 mm x 136 .0 mm x 79.1 mm) |
| Gross Weight | 7.8lb ( 3.55kg ) |
| Net Weight | 5.5lb ( 2.5kg ) |
Environmental | |
| Operating Temperature | -4°F ~ 131°F (-20°C ~ 55°C with 0.5 m/s airflow) |
| Storage Temperature | -40°F ~ 158°F (-40°C ~ 70°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3.5Grm / 5~500Hz / operation-eMMC,MicroSD or SSD |
| Anti-Shock | 50G peak acceleration (11 msec. duration,eMMC,microSD,or SSD) |
| Certification | CE / FCC Class B |
