PICO-MTU4
Pico-ITX Board with Intel® Core™ Ultra 7/Ultra 5 Processors
Features
- Intel® Core™ Ultra 7/Ultra 5 Processor SoC
- Onboard LPDDR5, up to 32GB
- 2.5GbE + 1GbE
- HDMI 1.4 + eDP 1.4
- M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
- M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
- USB 3.2 Gen 2 x 2 ports + USB 2.0 x 2
- RS-232/422/485 x 2
- TPM, GPIO 4-bit, SATA 6.0 Gb/s x 1
- SMBus/I2C (Default SMBus)
As the world's smallest board equipped with the new Intel® Core™ Ultra platform, the PICO-MTU4 leverages the disaggregated die design's hybrid CPU core architecture and dedicated AI engine NPU to achieve up to a 24% boost in multi-thread performance and 50% lower SoC power consumption.
On a compact 2.5" form factor, this combination makes the PICO-MTU4 a miniature dynamo capable of powering even the most advanced edge computing, smart healthcare, and industrial robotics solutions.
Refined Mechanical Design
Through optimized component placement and a dedicated heatsink, the PICO-MTU4 boasts a remarkable temperature tolerance of -20°C to 70°C. Furthermore, the board's advanced image rendering, high AI workload throughput, and Wi-Fi 6 support add credibility to the PICO-MTU4's potential as the central component in roadside unit solutions, where real-time data processing and streamlined AI workload management are crucial.
High-Bandwidth Communication

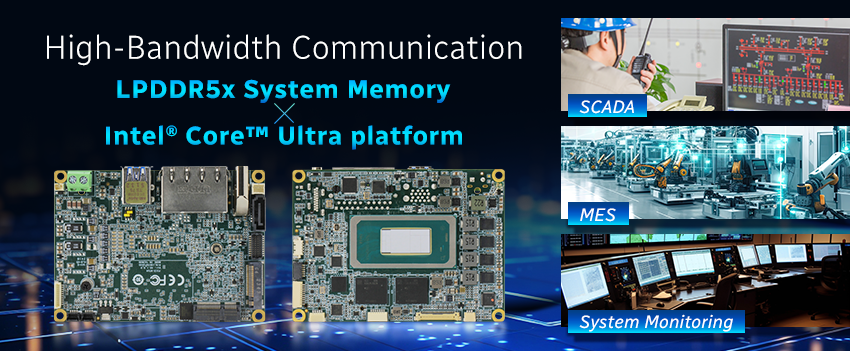

Complementing the PICO-MTU4's power is its high-bandwidth LPDDR5x system memory and diverse interface selection. Dual LAN and USB 3.2 Gen 2 ports can accommodate a range of cameras and sensors, while the board's internal connectors offer a variety of serial interfaces for industrial protocols, such as dual COM for RS-232/422/485, a 4-bit GPIO, and SMBus. This configuration makes the PICO-MTU4 the ideal foundation for SCADA, MES, and system monitoring devices.
System | |
| Form Factor | PICO-ITX |
| CPU | Intel® Core™ Ultra 7 Processor 165U (2PC+10EC/14T, P-core 1.70 GHz, E-core |
| Chipset | Integrated with Intel® SoC |
| Memory Type | Single-Channel LPDDR5 6400, up to 32GB |
| BIOS | UEFI |
| Wake On LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| Dimension | 3.94“ x 2.84“ (100mm x 72mm) |
| Gross Weight | 0.18 lbs (0.08 kg) |
| OS Support | Windows 10 (64bit) |
Power | |
| Power Requirement | 12V only |
| Power Supply Type | AT/ATX |
| Connector | Phoenix 2-pin Connector (Default) |
| Power Consumption | Intel® Core™ Ultra 7 Processor 165U, DDR5 32GB x1, 2.94A@+12V (Typical) |
Display | |
| Controller | Intel® Graphics |
| LVDS/eDP | eDP 1.4 x 1 |
| Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
| Multiple Display | Up to 2 Simultaneous Displays |
Audio | |
| Codec | — |
| Audio Interface | — |
| Speaker | — |
External I/O | |
| Ethernet | Intel® Ethernet Controller I226 2.5GbE, RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 ports |
| Serial Port | — |
| Video | HDMI 1.4 x 1 |
Internal I/O | |
| USB | USB 2.0 x 2 |
| Serial Port | COM 1 ~ 2 (RS-232/422/485, supports 5V/12V/RI) |
| Video | — |
| SATA | SATA 6Gb/s x 1 |
| Audio | — |
| DIO/GPIO | GPIO 4-bit |
| SMBus/I2C | I2C/SMBus (Default: SMBus) |
| Fan | 4pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Others | — |
Expansion | |
| Mini PCIe/mSATA | — |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4] / SATA, Default: PCIe [x4], select by BOM) |
| Others | — |
Environment & Certification | |
| Operating Temp | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Temp | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 1,063,716 |
| EMC | CE/FCC Class A |
