UP Xtreme 7100 Developer Board with Intel® N-series Processor

UP Xtreme 7100

UP Xtreme 7100 Developer Board with Intel® Processor N-series Processor

기능

  • Intel® Processor N-series, and Intel® Core™ i3-N305 Processor
  • Low power consumption
  • 2.5GbE x 2 (Intel® I226-IT)
  • 2-channel CAN 2.0B x 1
  • Watchdog timer, Onboard TPM 2.0
  • DIO/GPIO via Terminal Block
  • Cable-free design
  • Wide 9V~36V power input
  • Fanless design
개요

UP Xtreme 7100 개발자 보드(UPX-ASLN)는 AAEON의 최신 올인원 로봇 솔루션으로 AMR(자율 이동 로봇), AGV(자동 유도 차량) 및 산업 자동화 애플리케이션을 위해 세심하게 설계되었습니다. 포괄적인 통신 인터페이스 세트가 견고한 기능으로 강화된 소형 120.35mm x 122.5mm 보드에 내장되어 수명과 신뢰성을 제공합니다.

견적 요청

이 모든 것은 저전력, 비용 효율적인 Intel® 프로세서 N 시리즈 CPU 플랫폼을 기반으로 구축되었으며, 일반적으로 복잡한 작업을 실행하는 데 드는 높은 비용이나 전력 소비 없이 고급 로봇 솔루션을 구동하는 데 필요한 특성을 갖추고 있습니다. AGV 프로젝트를 시작하기 위한 시스템 수준 제품에 관심이 있다면 UP Xtreme 7100 Edge를 확인해 보세요.

온라인 쇼핑
Accelerate Your Success with AAEON Pathfinder
Deploy with Ease

Combining a computing unit and control PLC into one compact, low-profile system both saves space and allows for easy hardware integration.

Reduce Your TCO

A Pathfinder removes the need to buy, install, and maintain several component parts, allowing you to save on manpower, installation, and equipment costs.

AAEON’s Pathfinder - UP Xtreme 7100

Do you have these problems building up robotics?

  • You need to buy multiple separate parts to build your robotics hardware…
  • A whole assembly line building robotics systems comes with big costs, high manpower, more time …

How does AAEON’s Pathfinder solve these problems?

  • UP Xtreme 7100 saves you from an extra control PLC, providing onboard 24V DIO, CANbus and computing power, so your assembly is simpler.
  • Because UP Xtreme 7100 already has everything, you do not have to find and maintain extra parts!
Inside the Pathfinder

UP Xtreme 7100's Blueprint

+AI makes your AGV fleet smarter!

With +AI flexibility, the UP Xtreme 7100

can enable AGVs to deviate from preprogrammed pathways

for continuous operation if one unit fails,

removing bottlenecks before they occur.
UP Xtreme 7100 - Pathfinder
UP Xtreme 7100
Built to facilitate communication with sensors, actuators, and other peripherals essential to robotics applications such as AMR, the UP Xtreme 7100 is equipped with a selection of terminal blocks and a 30-pin board-to-board connector, granting access to digital I/O, GPIO, and isolated RS-232/422/485 function. Further, the board’s CAN 2.0B interface, DIP switch, and LED indicators are conducive to establishing communication with other devices on the CANBus network, making the UP Xtreme 7100 not only AMR-ready, but suited to a wide variety of industrial control solutions, including programmable logic controllers (PLCs).
The UP Xtreme 7100 features SKUs with Intel® Core™ i3-N305 and Intel® Processor N97 embedded CPUs, both of which offer economical benefits in the form of low power consumption and cost-friendliness. Nonetheless, the UP Xtreme 7100 still benefits from up to 8 cores and 8 threads of processing power, enhanced by a remarkably high single-core frequency. The platform consequently provides the sensor data processing, integrated graphics, and resources for path planning and control algorithms needed to make it ideal for AMR and AGV deployment.
UP Xtreme 7100 Developer | Board Intel® N-series Processor
Built on a compact 120.35mm x 122.5mm form factor, the UP Xtreme 7100 is easily deployed in tight spaces, a fact made even more impressive by its fanless design. Moreover, the board is remarkably low-profile, at just 42.75mm tall. To ensure compatibility with industrial use, the board is armed with a number of rugged features, including a wide 9V to 36V power input range, surge, vibration, and shock resistance, along with lockable I/O ports to prevent key data being lost due to harsh operating environments.

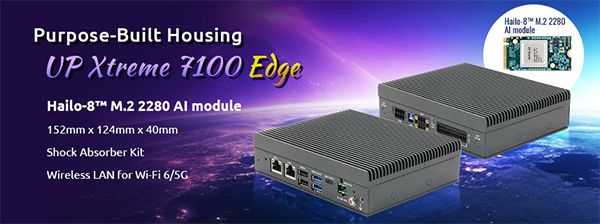

If you are looking for an out of the box, ready to deploy system-level solution, the UP Xtreme 7100 Edge contains all of the benefits of its board counterpart in a cable-free, VESA-mountable Mini PC measuring just 152mm x 124mm x 40mm. For extra protection, the UP Xtreme 7100 Edge also offers an optional shock absorber kit and wireless LAN for Wi-Fi 6 and 5G for enhanced connectivity. Making it the system for any project, the UP Xtreme 7100 Edge is also compatible with the Hailo-8™ M.2 2280 AI module, adding AI development capabilities to meet and exceed the demands of the next generation.
사양
UP Xtreme 7100

System

Processor

Intel® Processor N97
Intel® Core™ i3-N305

Graphics Intel® UHD Graphics Gen 12
Memory Up to 16GB LPDDR5
Storage

Up to 64GB onboard eMMC
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2])
SATA 6Gb/s x 1

I/O

RS-232/422/485 x 1 (Terminal Block) (Default RS232)
30pin board-to-board Connector x 1
UART x 1 (via 10 Pin Header x 1)

Camera —
USB

USB 2.0 (Type A) x 2
USB 3.2 Gen 2 (Type A) x 2
USB 3.2 Gen 2 (Type C) x 1 (Supports DP alt mode)

Expansion

M.2 3052 B-Key x 1 with Nano SIM slot (USB 3.0)
M.2 2230 E-Key x 1 (USB 2.0/PCIe)
M.2 2280 M-Key x 1 (PCIe Gen 3 [x2])
24V 8-in/8-out Digital I/O x 1 via Terminal Block (Output current: 500mA per channel)
6 pin GPIO x 1 via Terminal Block
6 pin 2-channel CAN 2.0B x 1 via Terminal Block (10 ~ 1000 kbps)
DIP Switch for CANBus function x 1
CAN LED indicator x 2
SATA 6Gb/s x 1

Display Interface

DP 1.4a x 1 (via USB Type-C)
eDP 1.3 x 1

Ethernet

2.5GbE x 2 (Intel® I226-IT)

Security Onboard TPM 2.0
RTC Yes
OS Support

Ubuntu 22.04 LTS (kernel 5.15 and kernel 5.19)

Power Requirement

Power 9-36V
Power Supply Type AT/ATX (AT as default)
Power Consumption (Typical) 52W~55W

Mechanical

Dimension 4.74” x 4.82” (120.35mm x 122.5mm)
Net Weight 1.11.lb (0.5kg)
Gross Weight 1.76 lb (0.8kg)

Environment

Operating Temperature With Heatsink: -4°F ~ 158°F (0°C ~ 60°C)/0.5m/s airflow
Operation Humidity 0% ~ 90% relative humidity, non-condensing
MTBF 421,998
Certification CE/FCC Class A, RoHS Compliant, REACH
다운로드
데이터 시트
사용 설명서
포장 목록, 상세 사양 및 기타 제품 정보를 보려면 데이터 시트 또는 사용자 설명서를 다운로드하세요.
