The BOXER-8223AI is powered by the NVIDIA Jetson NANO
Applications including defect inspection & intelligent security

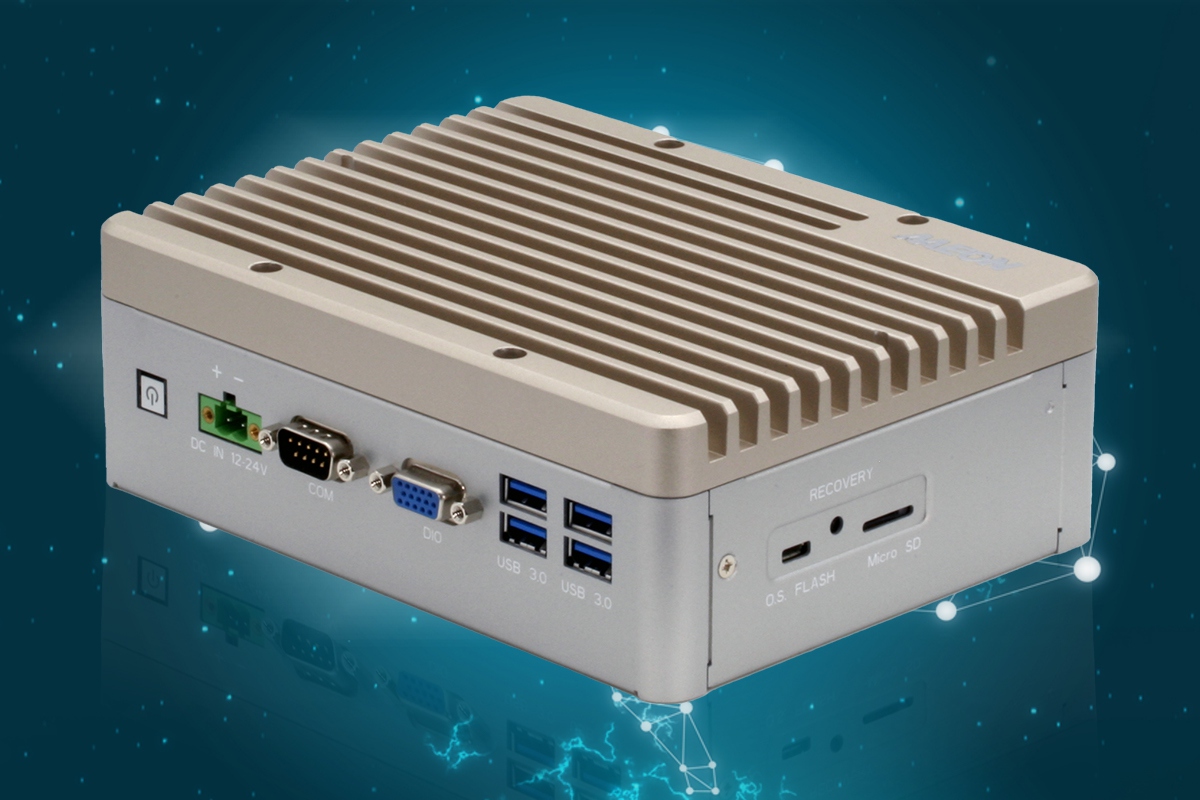

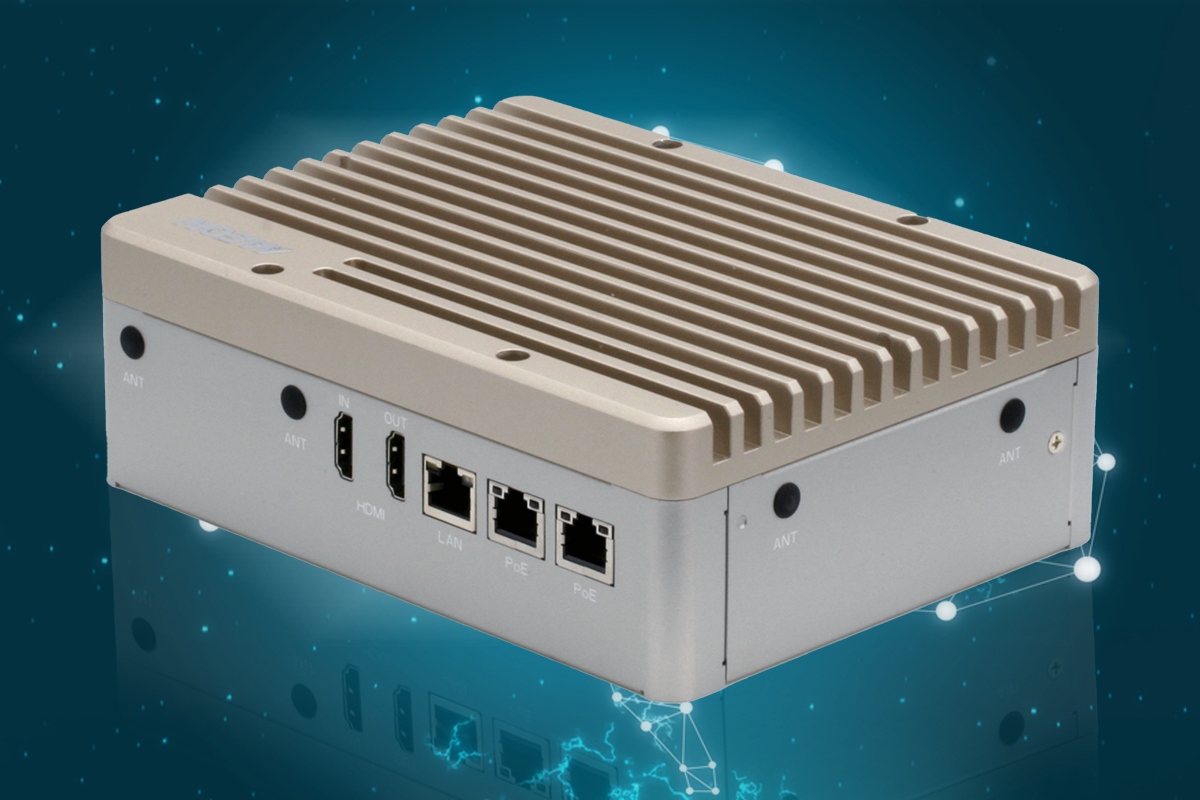

BOXER-8223AI

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA Jetson Nano

Features

  • NVIDIA Jetson Nano
  • 4GB LPDDR4
  • 16GB eMMC + Micro SD card slot
  • PoE/PSE GbE LAN x 2
  • HDMI Input
  • Digital I/O 13-channel
  • Full-size Minicard x 1 w/ SIM Slot
  • 12~24Vdc Power Input
Overview
Request a Quote
Specifications
BOXER-8223AI

System

AI Accelerator Nvidia Jetson Nano
CPU Quad Core ARM® Cortex®-A57 MPCore Proccessor
System Memory 4GB LPDDR4
Storage Device 16GB eMMC + Micro SD card slot
Display Interface

HDMI Type A 2.0 *1 (Output)
HDMI Type A 1.4 *1 (Input)

Ethernet POE PSE LAN x2 (802.3at)
I/O

USB Type A x 4 for USB 3.2 Gen1
GbE LAN with LED Indicator
POE PSE LAN x2 (802.3at)
DB-9 x 1 for RS-232/485
DB15 x 1 Female for 13 Channel DIO
O.S Flash port x 1
Recovery port x1
Antenna opening x 2
HDMI Type A 2.0 *1 (Output)
HDMI Type A 1.4 *1 (Input via MIPI CSI) Power bottom *1

Expansion

Minicard*1 w/ SIM slot
M.2 E-Key 2230 x 1(for WiFi)

Indicator Power LED x 1
OS Support Nvidia Jetpack 4.5 or above

Power Supply

Power Requirement DC 12V~24V with 2-pin terminal block ATX mode

Mechanical

Mounting Wall mount kit (default)
Dimensions (W x D x H) 7.09” x 5.35” x 2.41” (180.0 mm x 136 .0 mm x 61.1 mm)
Gross Weight 4.63 lbs. (2.1 kg)
Net Weight 2.87 lbs. (1.3 kg)

Environmental

Operating Temperature 14°F ~ 158°F (-10°C ~ 70°C), with 0.5m/s airflow
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration Random, 3 Grms, 5~500Hz
Anti-Shock 50G peak acceleration (11 msec. duration,eMMC)
Certification CE / FCC class A / UKCA
Downloads
Datasheet
Manual
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
