BOXER-8641AI

AI@Edge Compact Fanless Embedded BOX PC with NVIDIA AGX Orin


Features

  • NVIDIA® Jetson AGX Orin
  • 32GB LPDDR5x
  • Multi-storage option: 64GB eMMC / MicroSD slot / 2.5 drive bay
  • Support M.2 Key E / M.2 Key B / M.2 Key M
  • Support GbE LAN x 2
Overview

AAEON's BOXER-8641AI is powered by the NVIDIA Jetson AGX Orin CPU module. Containing 64 GB 256-bit system memory and 64 GB eMMC storage,

the BOXER-8641AI can enable applications such as high-end autonomous manufacturing.

Specifications
BOXER-8641AI

System

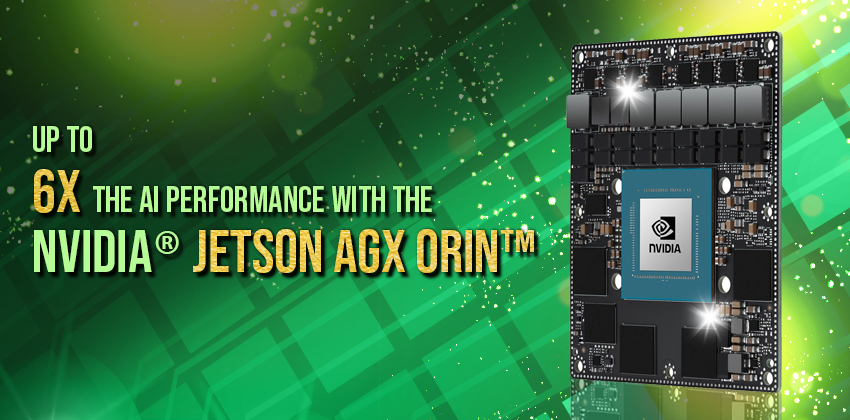

AI Accelerator NVIDIA® AGX Orin
CPU 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3
System Memory 32GB 256-Bit LPDDR5x 205GB/s
Storage Device

64GB eMMC 5.1 x 1

MicroSD slot x 1 SATA drive bay x 1

Display Interface HDMI Type A for HDMI 2.0 x 1
Ethernet RJ-45 for GbE LAN x 2

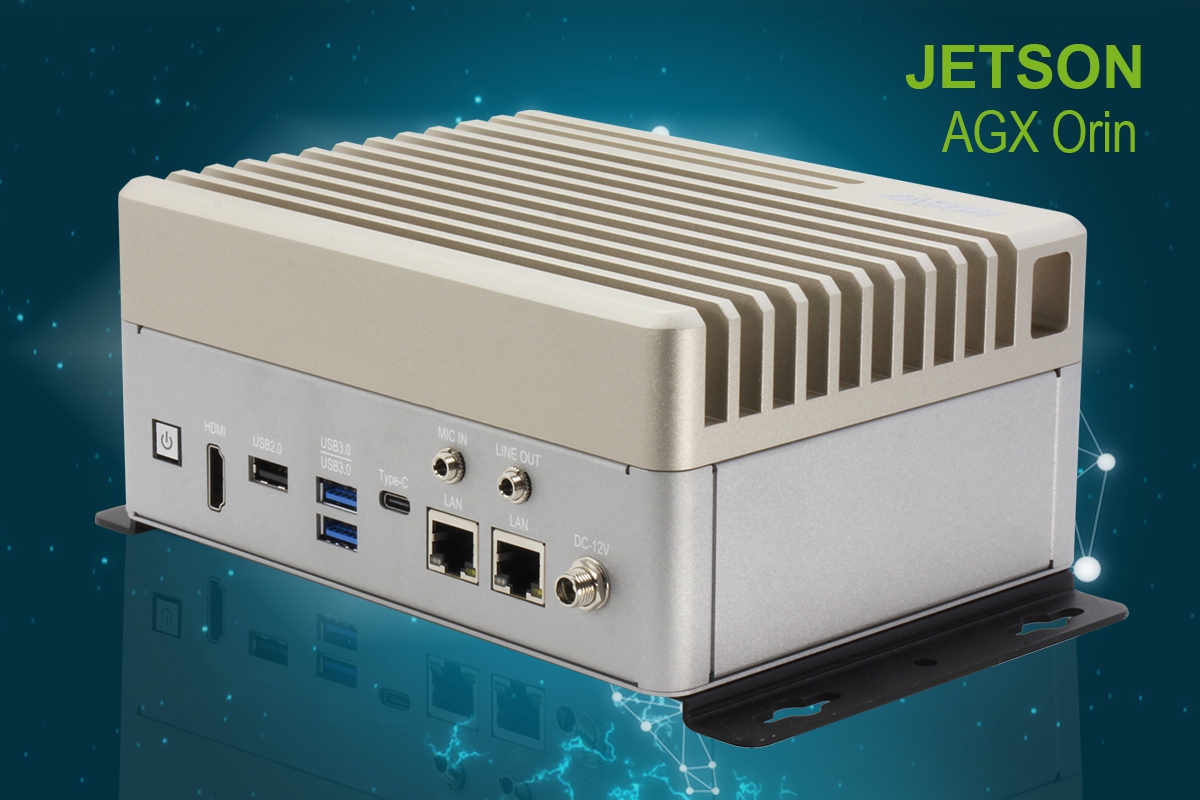

I/O

USB Type A for USB 3.2 Gen 2 x 2

USB Type C for USB 3.2 Gen 2 with USB OTx 1

USB Type A for USB 2.0 x 3

Micro USB x 1 for OS Flash

RJ-45 for GbE LAN x 2

Mic in and Lin out x1

Reset Button x 1

Recovery Button x 1

MicroSD card slot x 1

Antenna opening x 2

HDMI Type A for HDMI 2.0 output x 1

Power Button x 1

Expansion

M.2 E-Key 2230 (for WiFi) x 1

M.2 B-Key x1

M.2 M-Key x1

SATA port for 2.5“ drive x 1

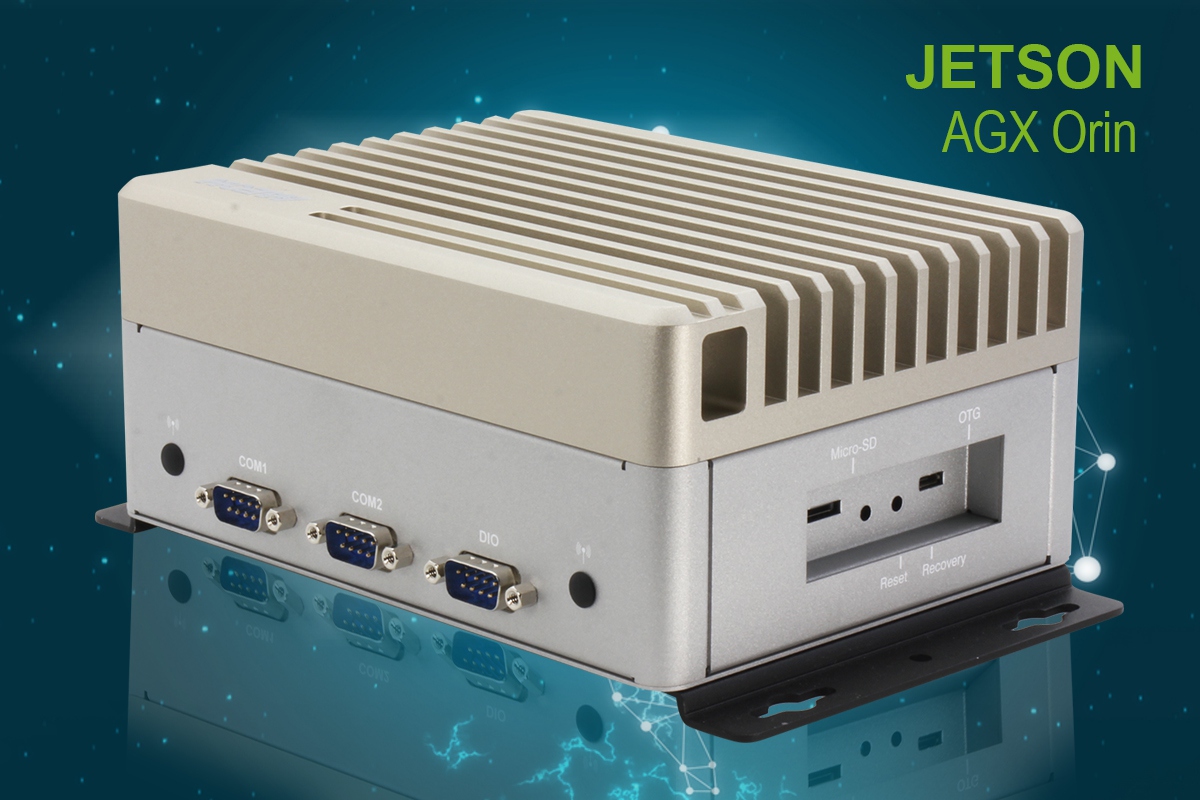

RS-232/422/485 pin header x 2

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack 5.0 and above)

Power Supply

Power Requirement 12V DC with lockable DC Jack

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H) 7.09 “ x 5.35 “ x 2.41“ (180.0 mm x 136 .0 mm x 61.1 mm)
Gross Weight 4.63 lbs. (2.1 kg)
Net Weight 2.87 lbs. (1.3 kg)

Environmental

Operating Temperature 14°F ~ 104°F (-10°C ~ 40°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 158°F (-40°C ~ 70°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz / operation-eMMC,MicroSD or mSATA
Anti-Shock 50G peak acceleration (11 msec. duration,eMMC,microSD,or mSATA)
Certification CE / FCC class A
Downloads
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
