The BOXER-8223AI is powered by the NVIDIA Jetson NANO
Applications including defect inspection & intelligent security

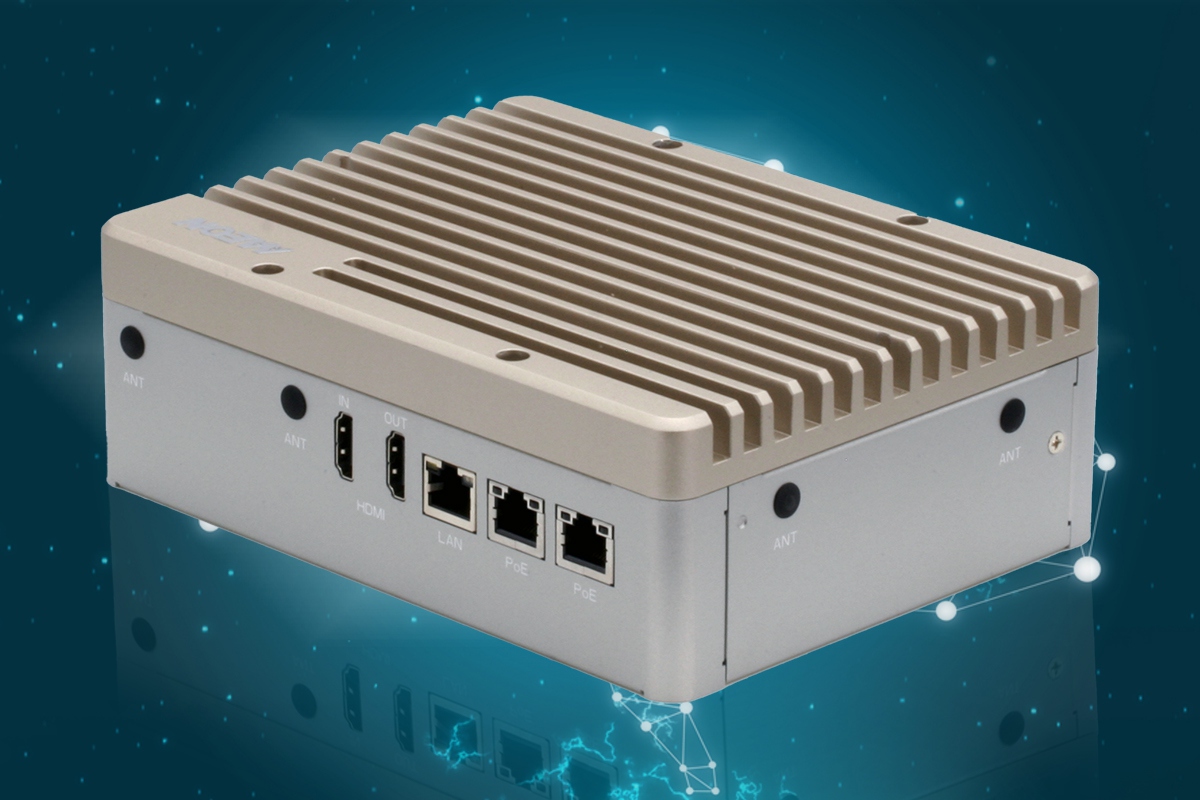

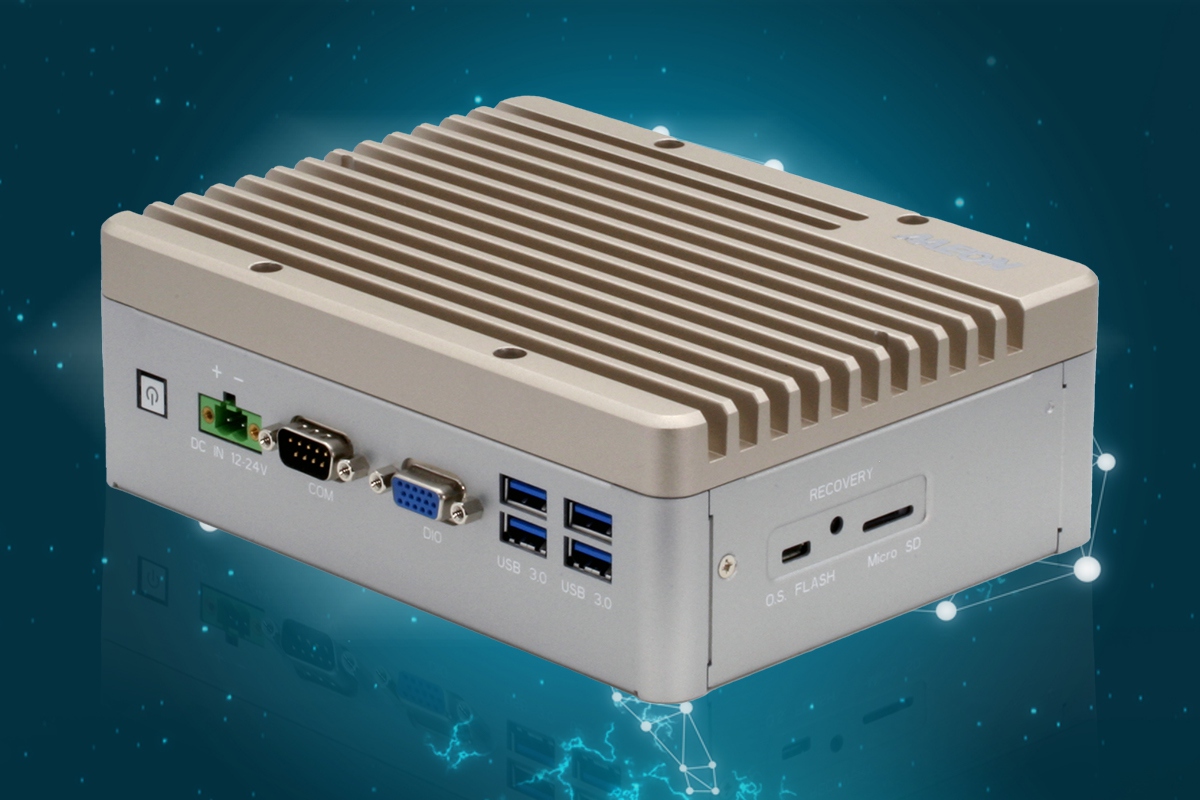

BOXER-8223AI

基于NVIDIA Jetson Nano的AI@Edge紧凑型无风扇嵌入式BOX PC


功能特点

  • NVIDIA Jetson Nano
  • 4GB LPDDR4
  • 16GB eMMC + Micro SD卡插槽
  • PoE/PSE GbE LAN x 2
  • HDMI输入
  • 数字I/O 13-channel
  • 全尺寸Minicard x 1 w/ SIM卡槽
  • 12~24Vdc电源输入
产品介绍

BOXER-8223AI结合了高效的NVIDIA®Jetson Nano™,具有PoE PSE支持和HDMI输入的灵活性。Jetson Nano专用于AI边缘计算,采用具有128个NVIDIA CUDA®内核的NVIDIA Maxwell™ GPU架构,四核ARM® Cortex®-A57 MPCore处理器 。这种创新设计使其处理速度高达472 GFLOPs,并且能够操作多个神经网络或同时处理多个高分辨率图像。

BOXER-8223AI提供了更大的灵活性,以满足广泛的应用需求。存储能力得益于16GB的板载eMMC存储,可以使用microSD卡进行扩展。BOXER-8223AI具有两个PoE PSE接口(802.3at),总功率可达60W。

此外,BOXER-8223AI具有HDMI输入功能,允许开发者和用户快速将AI驱动的视觉分析添加到从NVR监控系统到安全检查点x射线扫描仪和医疗设备的广泛应用中。

BOXER-8233AI的Mini Card插槽和M.2 2230插槽还提供了扩展功能,允许用户和开发人员快速添加Wi-Fi和LTE网络支持等功能。BOXER-8223AI通过四个USB3.2 Gen 2端口、COM和DIO端口提供灵活的I/O加载,设计用于连接多种传感器、控制设备等。

技术规格
BOXER-8223AI

System

AI Accelerator Nvidia Jetson Nano
CPU Quad Core ARM® Cortex®-A57 MPCore Proccessor
System Memory 4GB LPDDR4
Storage Device 16GB eMMC + Micro SD card slot
Display Interface

HDMI Type A 2.0 *1 (Output)
HDMI Type A 1.4 *1 (Input)

Ethernet POE PSE LAN x2 (802.3at)
I/O

USB Type A x 4 for USB 3.2 Gen1
GbE LAN with LED Indicator
POE PSE LAN x2 (802.3at)
DB-9 x 1 for RS-232/485
DB15 x 1 Female for 13 Channel DIO
O.S Flash port x 1
Recovery port x1
Antenna opening x 2
HDMI Type A 2.0 *1 (Output)
HDMI Type A 1.4 *1 (Input via MIPI CSI) Power bottom *1

Expansion

Minicard*1 w/ SIM slot
M.2 E-Key 2230 x 1(for WiFi)

Indicator Power LED x 1
OS Support Nvidia Jetpack 4.5 or above

Power Supply

Power Requirement DC 12V~24V with 2-pin terminal block ATX mode

Mechanical

Mounting Wall mount kit (default)
Dimensions (W x D x H) 7.09” x 5.35” x 2.41” (180.0 mm x 136 .0 mm x 61.1 mm)
Gross Weight 4.63 lbs. (2.1 kg)
Net Weight 2.87 lbs. (1.3 kg)

Environmental

Operating Temperature 14°F ~ 158°F (-10°C ~ 70°C), with 0.5m/s airflow
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration Random, 3 Grms, 5~500Hz
Anti-Shock 50G peak acceleration (11 msec. duration,eMMC)
Certification CE / FCC class A / UKCA
下载
产品内容与配件等资讯请下载「规格表」以参考详情。
