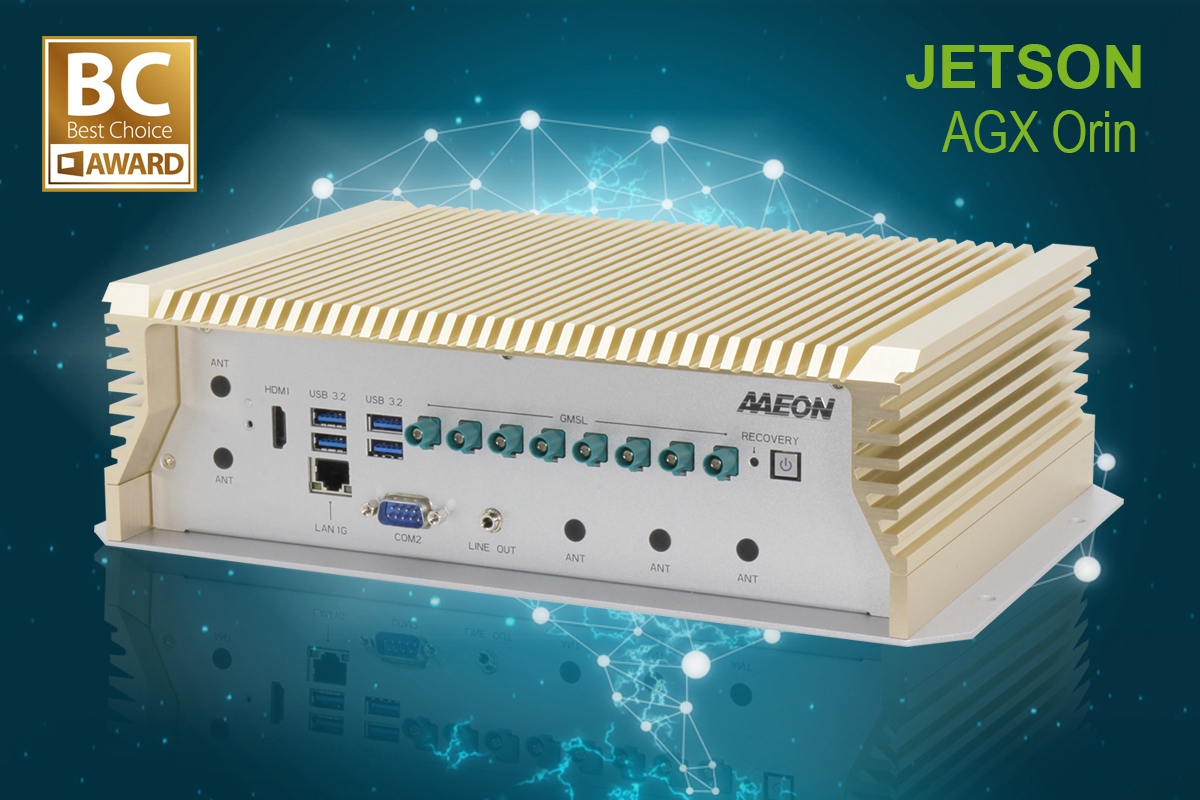

BOXER-8645AI

采用NVIDIA® Jetson AGX Orin™的AI@Edge无风扇嵌入式AI系统

功能特性

  • NVIDIA® Jetson AGX Orin™
  • 带有FAKRA连接器的GMSL2 x 8
  • 10G LAN x 1, Giga LAN x 1
  • ACC点火延迟开关
  • 军规级的抗振动与抗冲击
  • E-Mark认证
  • 可添加LAN x 8 (按需)
应用案例
产品介绍

作为研扬科技最新的AI系统，由NVIDIA® Jetson AGX Orin™模块驱动，BOXER-8645AI在嵌入式技术领域开创先河。该系统具备适合车载部署的坚固特性，并利用最新的图像处理技术，为构建更有效、先进和前瞻的AMR和车载解决方案提供支持。

产品咨询

BOXER-8645AI搭配研扬合作伙伴e-con Systems™推出的NileCAM25全高清全局快门GMSL2彩色摄像头，实现更高质量的图像采集，从而释放NVIDIA® Jetson AGX Orin™的AI性能。

线上商店
产品规格
BOXER-8645AI

System

AI Accelerator NVIDIA® Jetson AGX Orin™
CPU

AGX Orin 32GB: 8-core Arm® Cortex®-A78AE CPU
AGX Orin 64GB: 12-core Arm® Cortex®-A78AE CPU

System Memory

32GB LPDDR5
64GB LPDDR5

Storage Device

64GB eMMC 5.1 x 1
M.2 2280 M-Key x 1 (NVMe)
2.5” SATA x 2

Display Interface HDMI 2.0 x 1 (Type-A)
Ethernet

RJ-45 for 10G LAN x 1
RJ-45 for Giga LAN x 1
Additional LAN x 8 (By request)

I/O

GMSL2 with FAKRA x 8
USB 3.2 Gen 2 x 4 (Type-A)
Micro USB x 1 for OS Flash
Line-Out x 1
DB-9 x 1 for Isolated CANBus x 2
DB-9 x 2 for RS-232 (Rx/Tx/CTS/RTS)/RS-485 x 2
DB-9 x 1 for DIO x 8
Switch x 1 for Ignition Delay On/Off
3-pin Terminal Block x 1 for Power Input
Power Button x 1
Recovery Button x 1
Antenna Hole x 7
TPM Support
GNSS Support
9-Axis Sensor Support

Expansion

M.2 2230 E-Key x 1 (Wifi/BT)
M.2 3052 B-Key x 1 (LTE)
M.2 2280 M-Key x 1 (NVMe)
2.5” SATA x 2
SIM Slot x 2
MicroSD Slot x 1

Indicator Power LED x 1
OS Support

Linux (NVIDIA JetPack™ 5.0 and above)

Power Supply

Power Requirement

3-pin Terminal Block x 1 for 9V ~ 36V
ACC Ignition Delay On/Off

Mechanical

Mounting Wall mount (default)
Dimensions (W x D x H) 11.26” x 7.95” x 3.54” (286mm x 202mm x 90mm)
Gross Weight 11 lb. (5Kg)
Net Weight 13 lb. (5.9Kg)

Environmental

Operating Temperature -13°F ~ 149°F (-25°C ~ 65°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration

MIL-STD-810G, 514.6C Procedure 1, Category 4 Trucker/Semitrailer on US
highway (Figure 514.6C-1-Category 4-Common carrier)

Anti-Shock MIL-STD-810G, Method 516.6, Procedure I, flight vehicle equipment
Certification E-Mark, CE/FCC Class A
下载
产品规格书
使用手册
产品包装内容与配件等信息请下载上方‘产品规格书’以参考详情。
