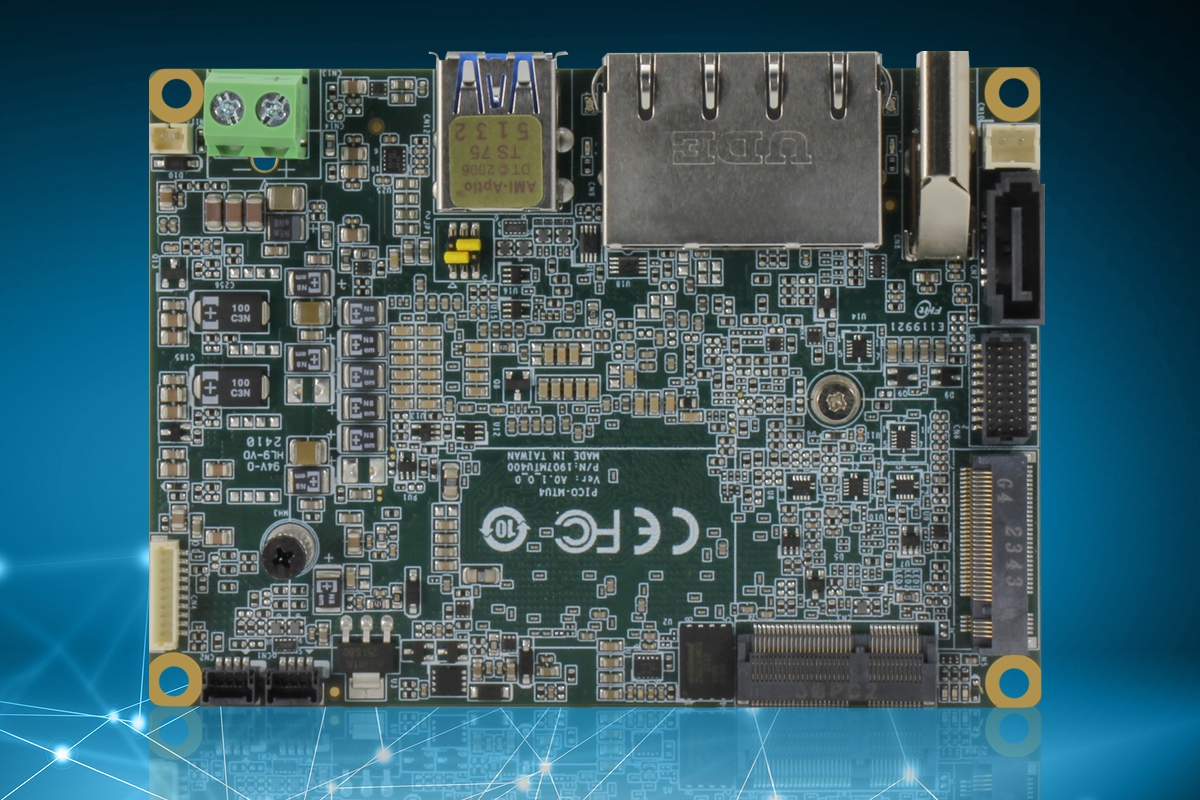

PICO-MTU4
Pico-ITX主板, 搭载Intel® Core™ Ultra 7/Ultra 5处理器
功能特点
- Intel® Core™ Ultra 7/Ultra 5 处理器 SoC
- 板载LPDDR5, 最高支持32GB
- 2.5GbE + 1GbE
- HDMI 1.4 + eDP 1.4
- M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
- M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
- USB 3.2 Gen 2 x 2 端口 + USB 2.0 x 2
精巧的机构设计
通过优化的零件布局和专用的散热器，PICO-MTU4 拥有惊人的温度耐受性，可在-20°C至70°C 的环境中稳定运行。此外，该主板的高级图像渲染、高AI工作负载吞吐量和支持Wi-Fi 6进一步证明了PICO-MTU4作为路边单元解决方案核心组件的潜力，在这些应用场景中，实时数据处理和高效的AI工作负载管理至关重要。
高带宽通信
PICO-MTU4通过其高带宽LPDDR5x系统内存和多样化接口选择补充了性能动力。双以太网和USB 3.2 Gen 2端口可连接各种相机和传感器，而板载内部连接器则提供一系列用于工业协议的串行接口，例如RS-232/422/485的双COM，4位GPIO和SMBus。这种配置使PICO-MTU4成为SCADA、MES和系统监控设备的理想基础。
System | |
| Form Factor | PICO-ITX |
| CPU | Intel® Core™ Ultra 7 Processor 165U (2PC+10EC/14T, P-core 1.70 GHz, E-core |
| Chipset | Integrated with Intel® SoC |
| Memory Type | Single-Channel LPDDR5 6400, up to 32GB |
| BIOS | UEFI |
| Wake On LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM 2.0 |
| RTC Battery | Lithium Battery 3V/240mAh |
| Dimension | 3.94“ x 2.84“ (100mm x 72mm) |
| Gross Weight | 0.18 lbs (0.08 kg) |
| OS Support | Windows 10 (64bit) |
Power | |
| Power Requirement | 12V only |
| Power Supply Type | AT/ATX |
| Connector | Phoenix 2-pin Connector (Default) |
| Power Consumption | Intel® Core™ Ultra 7 Processor 165U, DDR5 32GB x1, 2.94A@+12V (Typical) |
Display | |
| Controller | Intel® Graphics |
| LVDS/eDP | eDP 1.4 x 1 |
| Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
| Multiple Display | Up to 2 Simultaneous Displays |
Audio | |
| Codec | — |
| Audio Interface | — |
| Speaker | — |
External I/O | |
| Ethernet | Intel® Ethernet Controller I226 2.5GbE, RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 ports |
| Serial Port | — |
| Video | HDMI 1.4 x 1 |
Internal I/O | |
| USB | USB 2.0 x 2 |
| Serial Port | COM 1 ~ 2 (RS-232/422/485, supports 5V/12V/RI) |
| Video | — |
| SATA | SATA 6Gb/s x 1 |
| Audio | — |
| DIO/GPIO | GPIO 4-bit |
| SMBus/I2C | I2C/SMBus (Default: SMBus) |
| Fan | 4pins Smart Fan x1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Others | — |
Expansion | |
| Mini PCIe/mSATA | — |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4] / SATA, Default: PCIe [x4], select by BOM) |
| Others | — |
Environment & Certification | |
| Operating Temp | -4°F ~ 158°F (-20°C ~ 70°C) |
| Storage Temp | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 1,063,716 |
| EMC | CE/FCC Class A |
