BOXER-8651AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin NX
기능
- NVIDIA® Jetson Orin NX
- Expansion: M.2 2230 E-Key x 1, M.2 3052 B-Key x 1
- USB 3.2 Gen 2 (Type-A) x 2 & USB 2.0 (Type-A) x 2
- COM, DIO, CANBus
- Operating Temperature: -5°F~ 131°F (-15°C ~ 55°C)
크기가 105mm x 90mm x 52mm에 불과한 BOXER-8651AI는 NVIDIA® Jetson Orin™ NX의 고급 기능을 활용하도록 설계된 시장에서 가장 작은 팬리스 시스템으로 AI를 최첨단으로 가져오기 위한 최고의 플랫폼입니다. 연결 및 실시간 컴퓨팅 측면에서 최적의 성능을 제공하기 위해 벽면 장착을 통해 쉽게 배포할 수 있는 BOXER-8651AI는 가장 좁은 공간에서도 잘 작동합니다.
BOXER-8651AI는 다양한 산업 분야의 프로젝트에 가치를 더하고 시장에 바로 사용할 수 있는 솔루션을 제공하도록 설계되어 귀하의 비즈니스에 정교함뿐 아니라 효율성과 시장 출시 속도 측면에서도 이점을 제공합니다.
NVIDIA® Jetson Orin™ NX
Equipped with an NVIDIA Ampere architecture GPU featuring 1024 CUDA® and 32 Tensor Cores, the BOXER-8651AI, integrated with the NVIDIA Jetson Orin™ NX module, delivers cutting-edge inferencing capabilities with up to 70 TOPS of AI performance and dedicated Deep Learning Accelerator fixed-function hardware for handling more complex workloads.
NVIDIA JetPack™ Support
Compatible with NVIDIA JetPack™ 5.0 and higher, the BOXER-8651AI enables users to harness a comprehensive library of tools for building top-tier inferencing models. This enhances application performance by accelerating graphics, data processing, and image classification functions which can be tailored to your specific needs.

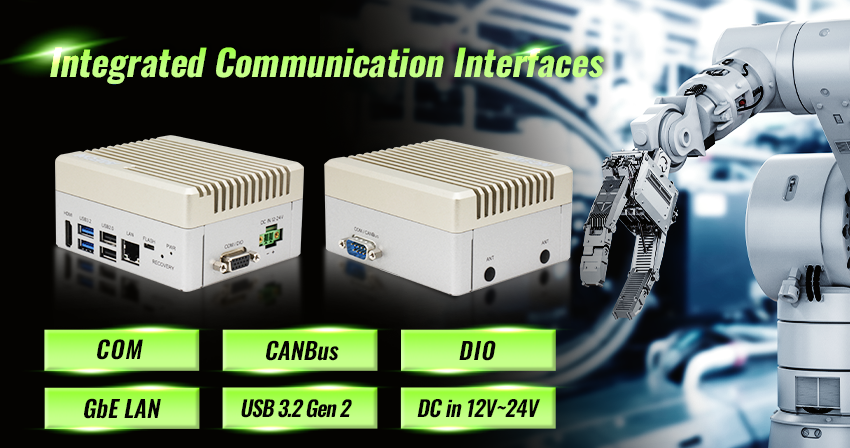

The BOXER-8651AI features versatile I/O options, including DB-9 and DB-15 ports for RS-232 (Rx/Tx/CTS/RTS)/RS-485, CANBus, and DIO functions, facilitating high-speed serial communication with external devices, even in industrial settings with legacy infrastructure. Additionally, the device provides HDMI 2.1 display output, GbE LAN, and a variety of USB Type-A ports, supporting both USB 3.2 Gen 2 and USB 2.0 functionality.
With the ability to operate in a wide temperature range from -5°F to 131°F (-15°C to 55°C) and a compact wall-mountable chassis, the BOXER-8651AI is well-suited for deployment in various settings and conditions across a range of markets. Its anti-shock and vibration resistance features further enhance its durability in challenging deployment spaces.
Accommodating software stacks that can handle the execution of multiple simultaneous complex tasks requires substantial storage. Therefore, the BOXER-8651AI features an M.2 3052 B-Key slot to accommodate M.2 2242 B+M Key SSDs and an M.2 2230 E-Key slot for additional storage capacity. These versatile expansion slots can also be used for wireless communication functions, including 4G, 5G, Wi-Fi, and Bluetooth, making it ideal for handling multiple complex tasks.
System | |
| AI Accelerator | NVIDIA® Jetson Orin NX |
| CPU | 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU |
| System Memory | 8GB/16GB LPDDR5 |
| Storage Device | M.2 3052 B-Key x 1 for M.2 2242 B+M Key SSD (Default Storage) |
| Display Interface | HDMI 2.1 (Type-A) x 1 |
| Ethernet | RJ-45 x 1 for GbE LAN |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 |
| Expansion | M.2 3042/3052 B Key x 1 (4G/5G/M.2 2242 B+M Key storage) |
| Indicator | Power LED x 1 |
| OS Support | Linux (NVIDIA Jetpack™ 5.0 up) |
Power Supply | |
| Power Requirement | 12V~24V DC in with 2 pins terminal block x 1 |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 4.13” x 3.54” x 2.05” (105mm x 90mm x 52mm), w/o bracket |
| Gross Weight | 2.4 lb. (1.1Kg) |
| Net Weight | 1.58 lb. (0.7Kg) |
Environmental | |
| Operating Temperature | -5°F ~ 131°F (-15°C ~ 55°C), according to IEC60068-2 with 0.5 m/s AirFlow |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Storage Humidity | 5% ~ 95% @ 40C, non-condensing |
| Anti-Vibration | 3.5Grm / 5~500Hz / Operation |
| Anti-Shock | 50G peak acceleration |
| Certification | CE/FCC class A |
