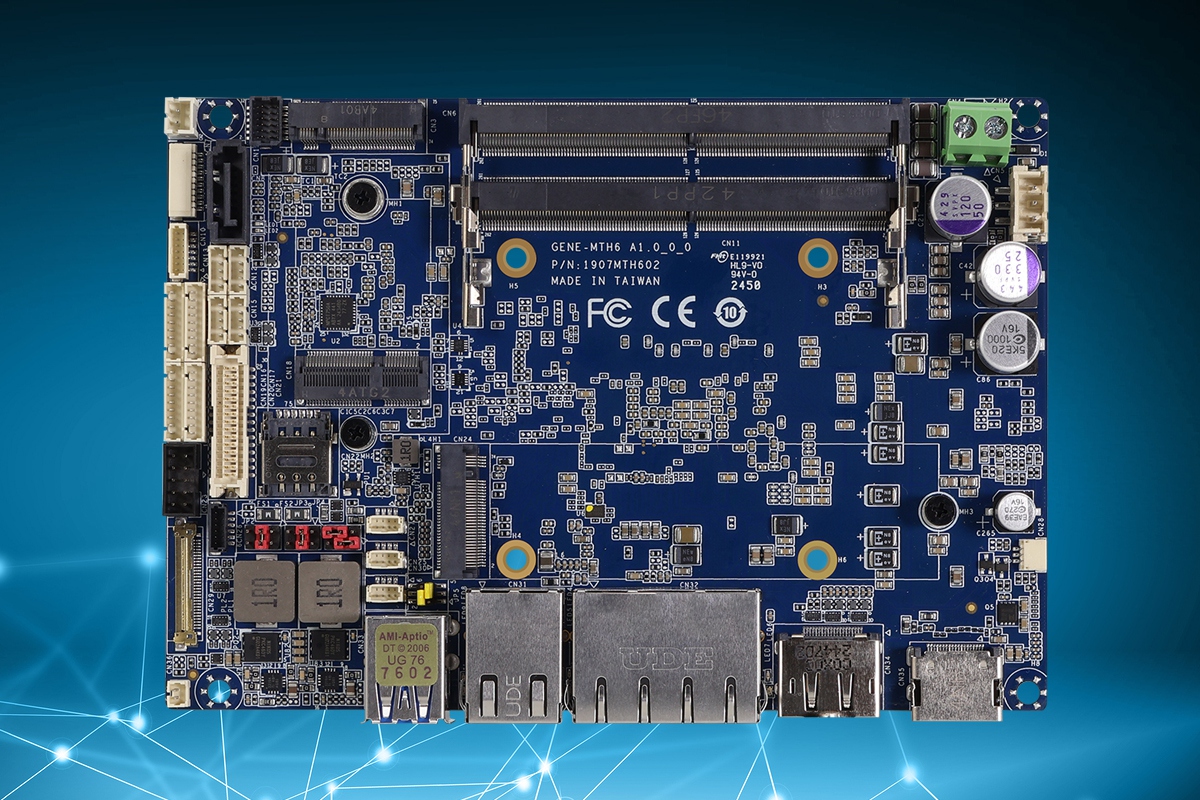

GENE-MTH6
3.5" SubCompact Board with Intel® Core™ Ultra SoC
Features
- Intel® Core™ Ultra processors (Series 1)
- DDR5 5600 MHz, Dual Channel SODIMM x 2, up to 96GB
- LVDS x 1, eDP x 1, DP x 1, HDMI x 1
- LAN x 3, SATA 6Gb/s x 1, 8-bit GPIO
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2280 M-Key x 1, M.2 3052 B-Key x 1, M.2 2230 E-Key x 1
- DC Input 9 ~ 36V
The GENE-MTH6 maximizes functionality while maintaining efficient, redundant operation. Leveraging the integrated CPU, GPU, and NPU of its Intel® Core™ Ultra SoC alongside 96GB of DDR5 memory, high-speed storage, and a combination of robust wired and wireless connectivity, the GENE-MTH6 offers everything needed to execute real-time data processing.
These capabilities make it ideal for smart traffic, environmental monitoring, and AI-powered surveillance applications.
The GENE-MTH6’s architecture is designed for maximum performance, with a disaggregated SoC comprising an Intel® Core™ Ultra CPU, Intel® Arc™ graphics, and a dedicated NPU. This is joined by 96GB of DDR5 support for latency-free data management. Such a combination not only offers the capacity to process complex AI and machine learning workloads, but also the ability to manage high-volume datasets on the edge in real time.
A 9V to 36V power input range with ERP support makes it both power-efficient and suitable for varied smart city deployment settings. Meanwhile, the board’s M.2 M-Key slot and FPC2 connector allow for the installation of multiple types of storage module, with its FPC2 connector also offering RAID support. The GENE-MTH6 can therefore accommodate modules with the high read/write speeds crucial for functions like real-time video analytics, while also providing redundancy for critical smart city infrastructure when scaled for applications like smart grids and public safety networks.
The GENE-MTH6 blends robust wired interfaces with next-gen wireless expansion for 360° connectivity. A total of three LAN ports, with two running at 2.5GbE provide excellent wired networking. Moreover, PEX support facilitates advanced functions like load balancing and traffic aggregation for managing large data volumes from peripheral cameras and sensors. Meanwhile, the GENE-MTH6’s M.2 E and B-Key slots provide ultra-fast, low-latency wireless communication in the form of Wi-Fi 6E CNVi and 5G, respectively.
System | |
| Form Factor | 3.5“ SubCompact Board |
| CPU | Intel® Core™ Ultra Processors: Intel® Core™ Ultra 7 Processor 155H (16C/22T, up to 4.8 GHz, 28W) Intel® Core™ Ultra 5 Processor 125H (14C/18T, up to 4.5 GHz, 28W) Intel® Core™ Ultra 7 Processor 155U (12C/14T, up to 4.8 GHz, 15W) Intel® Core™ Ultra 5 Processor 125U (12C/14T, up to 4.3 GHz, 15W) |
| Chipset | Integrated with Intel® SoC |
| Memory Type | DDR5 5600, Dual Channel SODIMM x 2 Max. 96GB, Non-ECC |
| BIOS | UEFI |
| Wake on LAN | Yes |
| Watchdog Timer | 255 Levels |
| Security | TPM2.0 |
| RTC Battery | Lithium Battery 3V/240mAH |
| Dimensions | 5.75“ x 4“ (146mm x 101.7mm), 0.88 lb. (0.4Kg) |
| OS Support | Windows® 10 (64-bit) Windows® 11 (64-bit) Linux Ubuntu 22.04.3 (kernel 6.2.0-26-generic) |
Power | |
| Power Requirement | +9-36V (Optional: +12V), support ERP |
| Power Supply Type | AT/ATX, support 3pin ATX |
| Connector | Phoenix 2-pin Connector (Colay 4 pin connector) |
| Power Consumption | Intel® Core™ Ultra 7, DDR5 32GB x 2, 5.78A @+12V (Typical) Intel® Core™ Ultra 7, DDR5 32GB x 1, 8.42A @+12V (Max) |
Display | |
| Controller | Intel® Arc™ Graphics Intel® Graphics |
| LVDS/eDP | LVDS x 1, Dual-Channel 18/24-bit, up to 1920 x 1080 eDP 1.4b HBR3 x 1, up to 3840 x 2160 @60Hz |
| Display Interface | HDMI 2.1 x 1, up to 8K x 4K@60Hz or 4K x 2K@120Hz DP 2.0 x 1, up to 7680 x 4320@60Hz 30bpp (support DP++) |
| Multiple Display | Up to 4 Simultaneous Displays |
Audio | |
| Codec | Realtek ALC897 |
| Audio Interface | Line-in/Line-out/MIC (Audio function not available for WiTAS SKU) |
| Speaker | — |

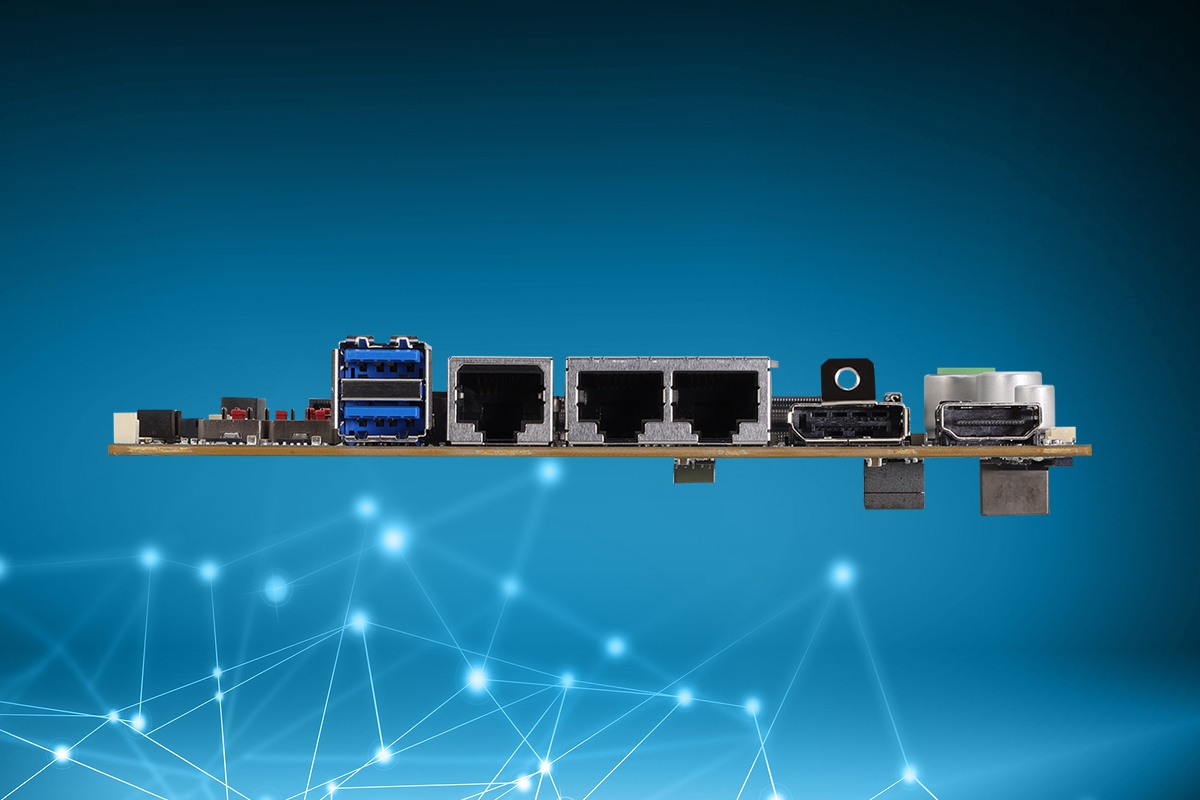

External I/O | |
| Ethernet | Intel® I219 1GbE, RJ-45 x 1 Intel® I226 2.5GbE, RJ-45 x 2, support PEX (Support Vpro only with ULTRA 7 165U/165H, ULTRA 5 135U/135H) |
| USB | USB3.2 Gen 2 x 2 port |
| Serial Port | — |
| Video | HDMI 2.1 x 1 DP 2.0++ x 1 |
Internal I/O | |
| USB | USB 2.0 x 4 |
| Serial Port | COM 1, COM 2 (RS-232/422/485, supports 5V/12V/RI) COM 3, COM 4 (RS-232) |
| Video |
LVDS x 1 Inverter x 1 (12V/2A) eDP x 1 |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| Audio | Audio Header x 1 (Optional, Audio function not available for WiTAS SKU) |
| DIO/GPIO | GPIO 8-bit |
| SMBus/I2C | SMBus/I2C x 1 (Default: SMBus) |
| Touch | — |
| Fan | 4 wire Smart Fan x 1 |
| Sim | Nano SIM x 1 |
| Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| Others | — |
Expansion | |
| Mini PCIe/mSATA | — |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA) Default: PCIe 4.0 [x4] (selected by BOM) M.2 3052 B-Key x 1 (PCIe 3.0 [x1] + USB 3.2/PCIe 3.0 [x2]) Default: PCIe 3.0 [x1] (selected by BOM) M.2 2230 E-Key x 1 (PCIe 3.0 [x1] + USB 2.0), supports Wi-Fi 6E CNVi (RAID 0, RAID 1 support on PCIe storage) |
| Others | FPC2 x 1 (PCIe Gen4 [x4] x 2), Support RAID 0, RAID 1 |
Environment & Certification | |
| Operating Temp. | 32°F ~ 140°F (0°C ~ 60°C) |
| Storage Temp. | -40°F ~ 185°F (-40°C ~ 85°C) |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF (Hours) | 753,493 |
| EMC | CE/FCC Class A |
