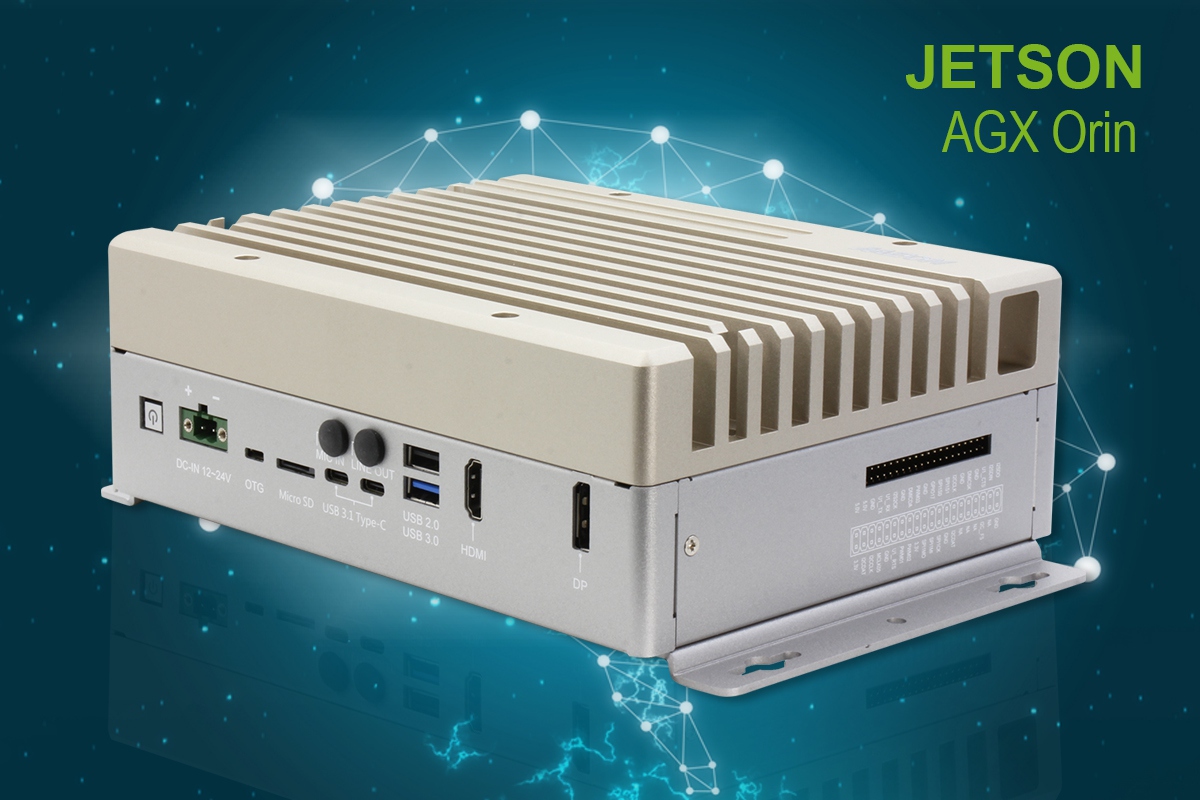

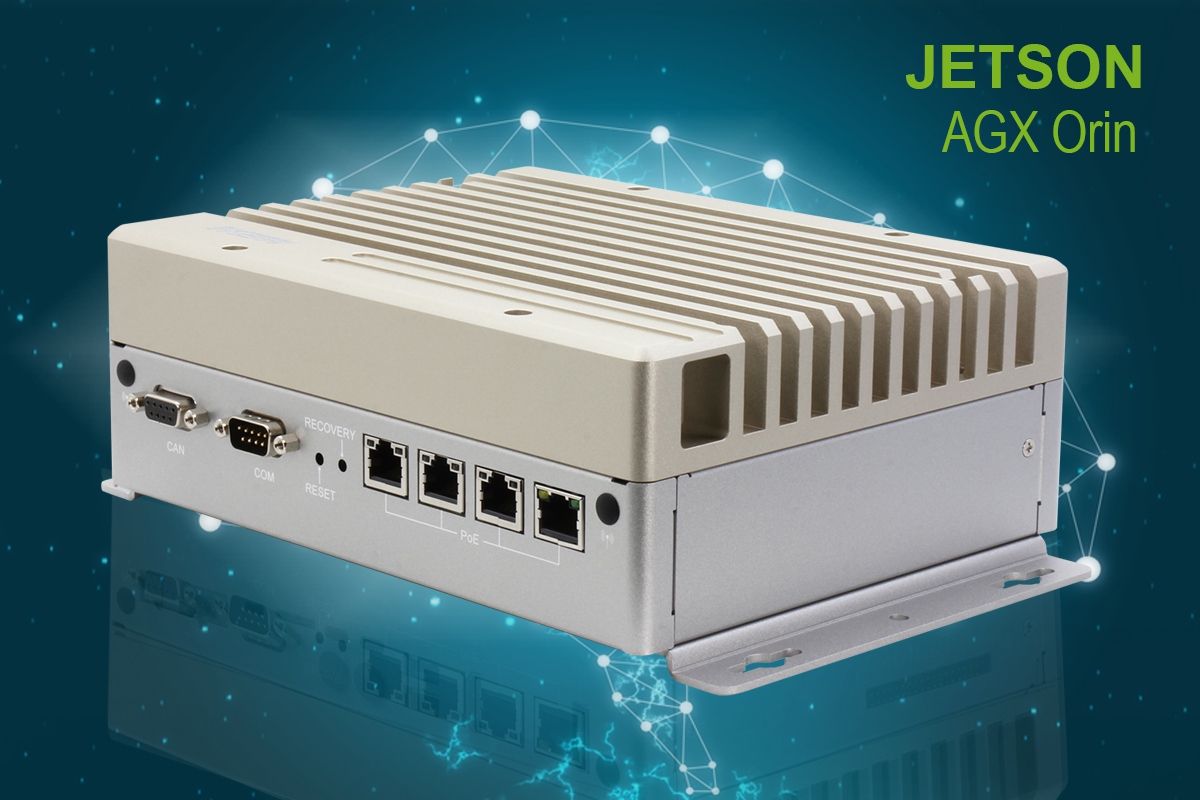

BOXER-8640AI
AI@Edge Fanless Embedded AI System with NVIDIA® Jetson AGX Orin™ 32GB
Features
- NVIDIA® Jetson AGX Orin™
- PoE/PSE 802.3af x 4 (Max. 60W)
- RS-232/422/485 x 1, CANBus x 1
- 40-pin Header, Mic-in/Line-out
- M.2 2230 E-Key, M.2 2280 M-Key, 2.5” SATA Drive Bay
Powered by the 12-core ARM® Cortex®-A78AE v8.2 64-bit CPU, and featuring NVIDIA’s Ampere architecture,
AAEON’s BOXER-8640AI will provide more sophisticated AI inferencing for vision-based AI applications, such as smart traffic management and safety.
System | |
| AI Accelerator | NVIDIA® Jetson AGX Orin™ 32GB |
| CPU | 8-core ARM v8.2 64bit CPU, 2MB L2 + 4MB L3 |
| System Memory | 32GB 256-Bit LPDDR5x 205GB/s |
| Storage Device | 64GB eMMC 5.1 Micro SD Card Slot x 1 2.5” SATA Drive Bay x 1 M.2 2280 M-Key x 1 |
| Display Interface | HDMI 2.0 x 1 |
| Ethernet | RJ-45 for GbE PoE/PSE 802.3af x 4 (Max. 60W) |
| I/O | USB 3.2 Gen 2 (Type-A) x 2 USB 3.2 Gen 2 (Type-C) x 2 RS-232/422/485 x 1 CANBus x 1 Mic-in x 1 Line-out x 1 MicroSD Slot x 1 Micro USB x 1 for OS Flash Recovery Button x 1 Power Button x 1 40-pin Header compliant with NVIDIA Jetson Orin Nano Developer Kit( without CANBus) |
| Expansion | USB 2.0 header x 1 (Optional, circuit reserved) M.2 2230 E-Key x 1 (Wifi/BT) M.2 2280 M-Key x 1 (NVMe) 2.5” SATA Drive Bay x 1 RS-232/422/485 pin header x 1 |
| Indicator | Power LED x 1 |
| OS Support | Linux (NVIDIA Jetpack™ 5.0 or above) |
Power Supply | |
| Power Requirement | DC 12V~24V 2-pin terminal |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 8.26” x 6.46” x 2.91” (210mm x 164.2mm x 74mm) |
| Gross Weight | 8.3 lb. (3.76Kg) |
| Net Weight | 6.4 lb. (2.9Kg) |
Environmental | |
| Operating Temperature | -4°F ~ 131°F (-20°C ~ 55°C, according to IEC60068-2 with 0.5 m/s AirFlow) |
| Storage Temperature | -40°F ~ 158°F (-40°C ~ 70°C) |
| Storage Humidity | 95% @ 40°C, non-condensing |
| Anti-Vibration | Random, 3 Grms, 5 ~ 500Hz |
| Anti-Shock | 50G Peak Acceleration |
| Certification | CE/FCC class A |
