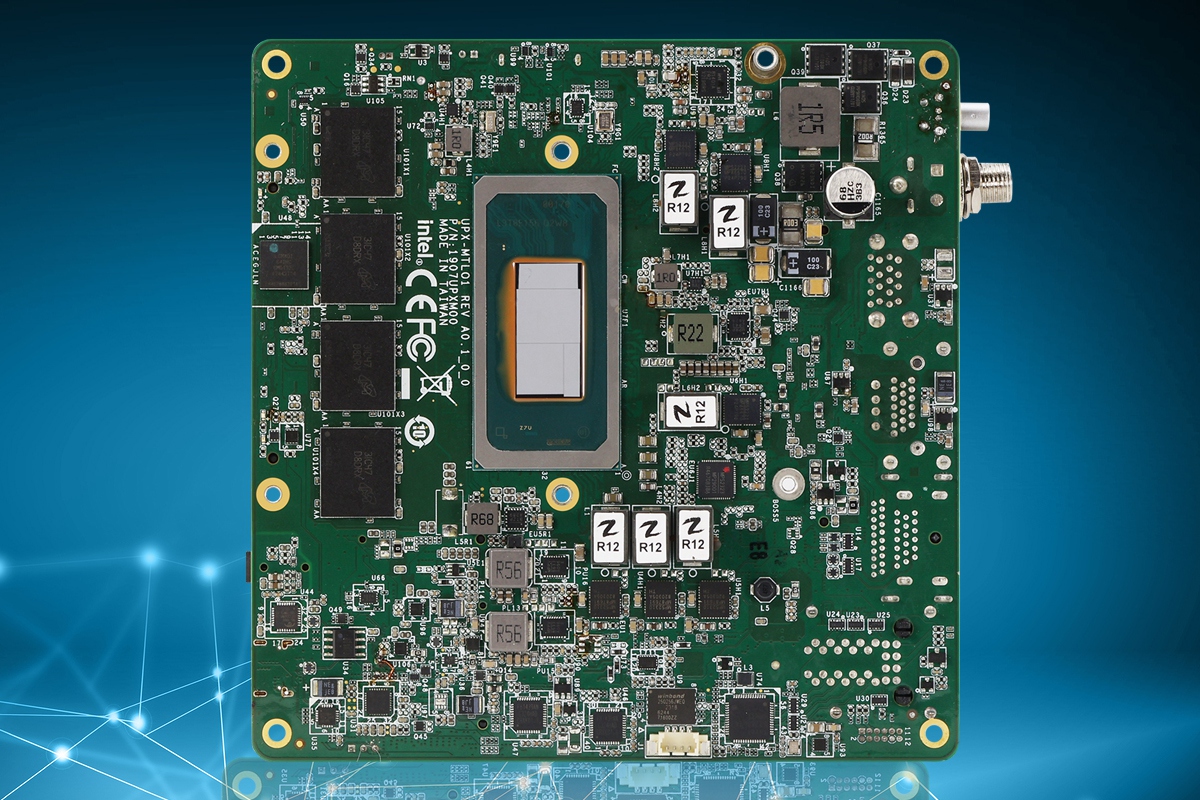

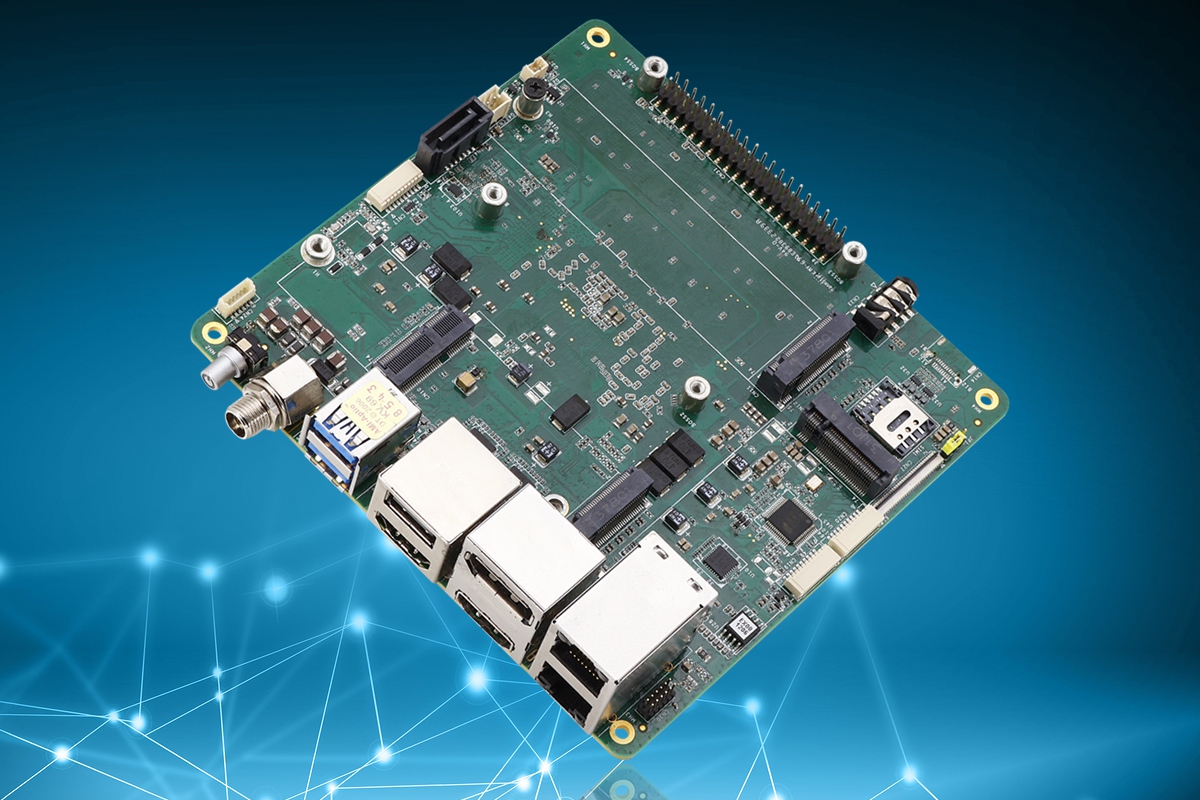

UP XTREME ARL
搭載 Intel Atom® x7000 RE 系列、Intel® N 系列處理器與 Intel® Core™ i3-N305 處理器的 UP Squared Pro 710H Edge 系統
產品特色
- Intel® Core™ Ultra 5/7 處理器
- 雙通道 LPDDR5 6400 記憶體，最高達 64GB
- 最多支援 3 組同步顯示輸出
- 多重 M.2 擴充 (2280 M-Key x2，適用於 5G 的 3052 B-Key，適用於 Wi-Fi/BT 的 2230 E-Key)
- 2.5GbE x1, GbE x1
- USB 3.2 Gen 2 (Type A x 2)
- TPM 2.0 與寬壓 DC 輸入 (9–36V)
System | |
| Processor | Intel® Core™ Ultra 5 processor 225H (18M Cache, up to 4.90 GHz) Intel® Core™ Ultra 7 processor 255H (24M Cache, up to 5.10 GHz) Intel® Core™ Ultra 7 processor 265H (24M Cache, up to 5.30 GHz) |
| Graphics | Intel® Arc™ graphics |
| Memory | Up to 64GB onboard LPDDR5 (Dual-Channel) |
| Storage | M.2 2280 M-Key x 2 SATA 6Gb/s x 1 |
| I/O | HDMI 2.1 x 2 DP 2.1 x 1 Audio Jack x 1 (Mic-in+Line-out) RS-232/422/485 10-pin header x 2 |
| Camera | MIPI-CSI via 61-Pin FPC Connector x 1 |
| USB | USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 |
| Expansion | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 3 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) M.2 3052 B-Key x 1 (PCIe Gen 3 [x1], USB 3.2 Gen 2 [x1]) with Nano SIM slot (USB 3.0) SATA 6Gb/s x 1 |
| Display Interface | HDMI 2.1 x 2 DP 2.1 x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT), GbE x 1 (Intel® Ethernet Connection I219) |
| Security | Onboard TPM 2.0 |
| RTC | Yes |
| OS Support | Win 11 LTSC/ 10 LTSC Linux: Ubuntu 24.04 LTS, Yocto 5+ |
Power Requirement | |
| Power | 9-36V DC-in (Lockable plug) |
| Power Supply Type | AT/ATX (ATX as default) |
| Power Consumption (Typical) | 57.6W ~ 86.4W |
Mechanical | |
| Dimension | 4.74“ x 4.82“ (120.35mm x 122.5mm) |
| Net Weight | 12.7 lb. (0.36Kg) |
| Gross Weight | 1.32lb (0.6kg) |
Environment | |
| Operating Temperature | 32°F - 140°F (0°C - 60°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| MTBF | 1,263,279 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
