BOXER-8223AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Nano™
功能特性
- NVIDIA® Jetson Nano™
- 4GB LPDDR4
- 16GB eMMC + Micro SD Card Slot
- PoE/PSE GbE LAN x 2
- HDMI Input
- Digital I/O 13-channel
- Full-size Mini Card x 1 w/ SIM Slot
- 12~24Vdc Power Input
BOXER-8223AI 將高效的 NVIDIA® Jetson Nano™ 與 PoE PSE 支持和 HDMI 輸入的靈活性結合在一起，專為 AI 邊緣運算而設計。Jetson Nano 搭載四核 ARM® Cortex®-A57 MPCore 處理器和搭載 128 個 NVIDIA CUDA® 核心的 NVIDIA Maxwell™ GPU 架構。這種設計支持高達 472 GFLOPs 的運算速度，能夠同時運行多個神經網絡或處理高解析度圖像。
BOXER-8223AI 提供更大的靈活性，滿足各種應用需求。內建的 16GB eMMC 存儲提供存儲功能，並可通過 microSD 卡進行擴展。BOXER-8223AI 配備兩個 PoE PSE 端口（802.3at），總功率可達 60W。
此外，BOXER-8223AI 還擁有 HDMI 輸入功能，使開發人員和使用者能夠快速將基於 AI 的視覺分析添加到各種應用中，從 NVR 監控系統到安全檢查點 X 光掃描儀和醫療設備。
BOXER-8233AI 也因其 Mini Card 插槽和 M.2 2230 插槽而提供了擴展性，使使用者和開發者可以快速添加功能，例如 Wi-Fi 和 LTE 網絡支持。BOXER-8223AI 提供靈活的 I/O 配置，包括四個 USB 3.2 Gen 2 端口、COM 端口和 DIO 端口，旨在與各種感測器、控制設備等連接。
The BOXER-8223AI is powered by the NVIDIA Jetson NANO, providing AI Edge Computing performance to power a wide range of applications including defect inspection and intelligent security.

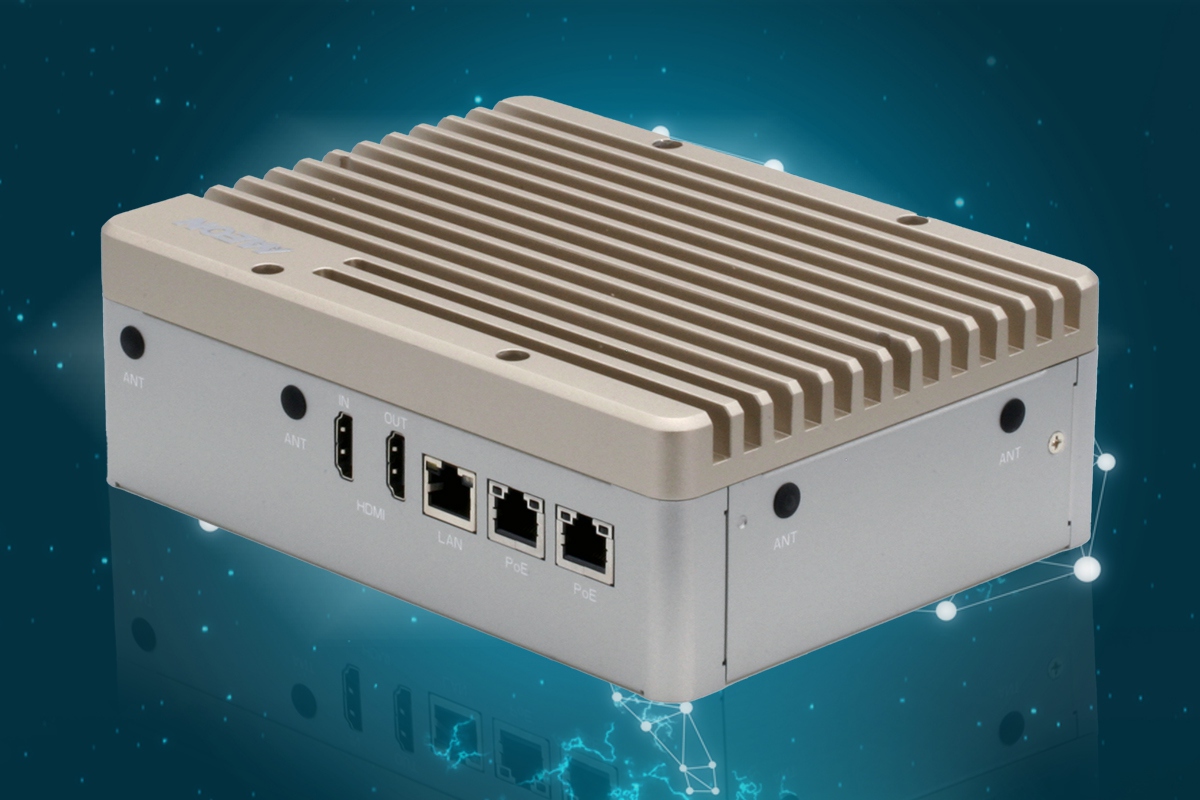

The BOXER-8223AI features two PoE PSE (Power Supply Equipment) 802.3at ports, supplying a total of 45W to power connected PoE devices including cameras or edge systems with PoE PD ports (Powered Device).
The BOXER-8223 features an HDMI input to quickly add vision-based analysis to a range of applications from airport security X-ray scanners to medical devices for AI-aided diagnosis.

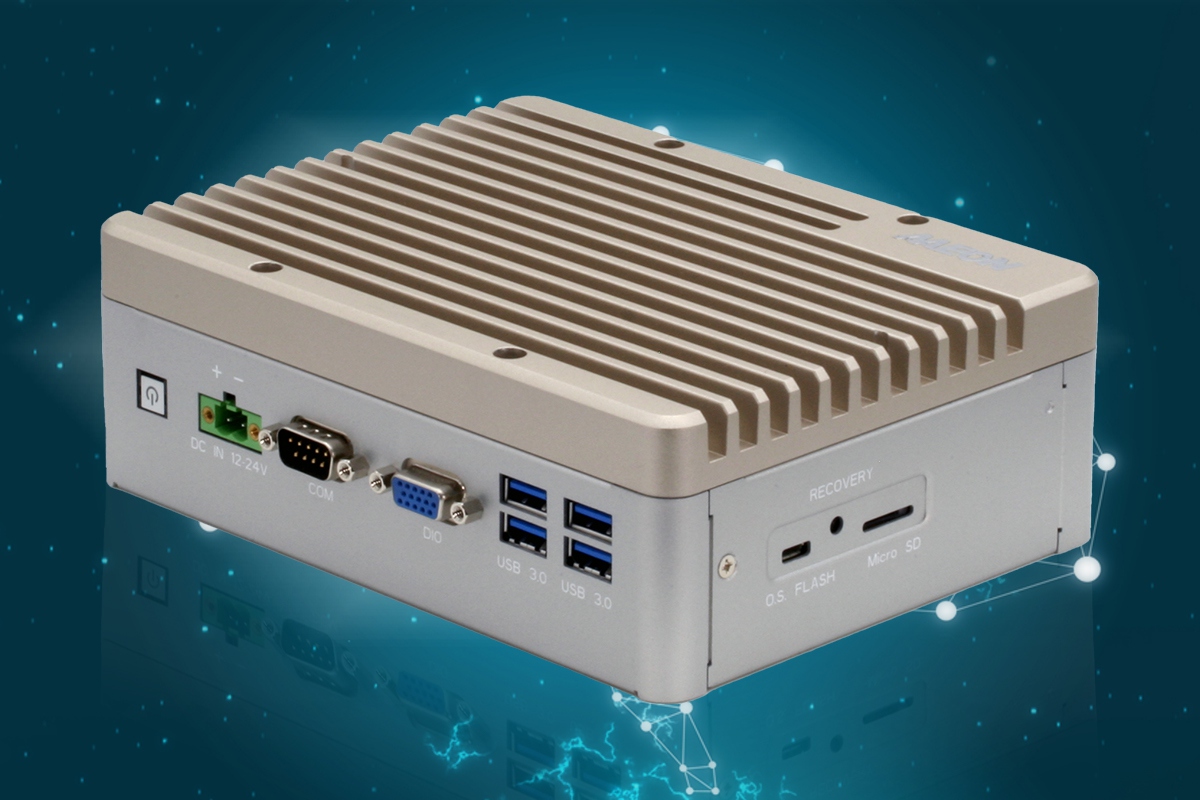

The BOXER-8223 is designed with a flexible I/O loadout, including four USB3.2 Gen 2 ports, COM and DIO ports, designed to connect with a wide range and number of sensors, control devices and more.
System | |
| AI Accelerator | NVIDIA® Jetson Nano™ |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Proccessor |
| System Memory | 4GB LPDDR4 |
| Storage Device | 16GB eMMC + Micro SD Card Slot |
| Display Interface | HDMI 2.0 (Type-A) x 1 (Output) |
| Ethernet | PoE/PSE LAN x 2 (IEEE 802.3at) |
| I/O | USB 3.2 Gen 1 (Type-A) x 4 |
| Expansion | Mini Card x 1 w/ SIM Slot |
| Indicator | Power LED x 1 |
| OS Support | NVIDIA Jetpack™ 4.5 or above |
Power Supply | |
| Power Requirement | DC 12V~24V with 2-pin terminal block ATX mode |
Mechanical | |
| Mounting | Wall mount kit (default) |
| Dimensions (W x D x H) | 7.09” x 5.35” x 2.41” (180.0mm x 136.0mm x 61.1mm) |
| Gross Weight | 4.63 lb. (2.1Kg) |
| Net Weight | 2.87 lb. (1.3Kg) |
Environmental | |
| Operating Temperature | 14°F ~ 158°F (-10°C ~ 70°C), with 0.5m/s airflow |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | Random, 3 Grms, 5~500Hz |
| Anti-Shock | 50G peak acceleration (11 msec. duration,eMMC) |
| Certification | CE/FCC Class A/UKCA |
