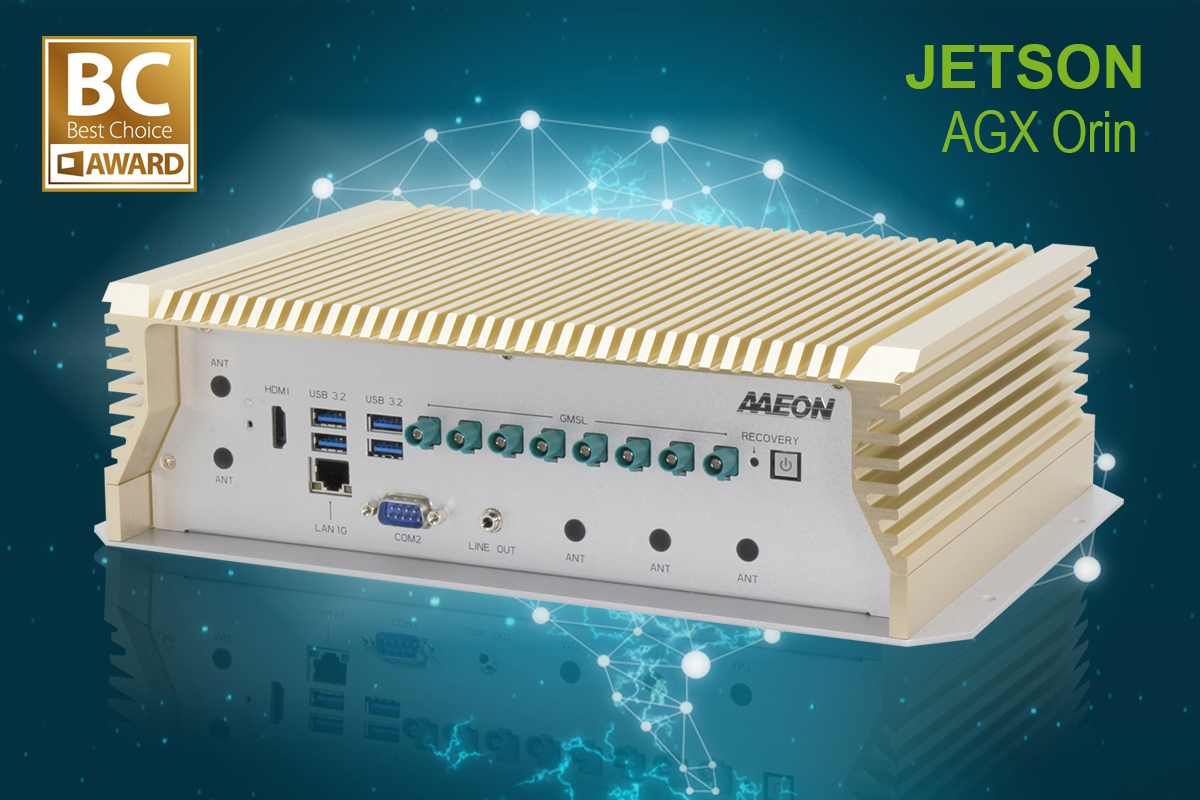

BOXER-8645AI

AI@Edge Fanless Embedded AI System with NVIDIA® Jetson AGX Orin™

功能特性

  • NVIDIA® Jetson AGX Orin™
  • GMSL2 with FAKRA Connectors x 8
  • 10G LAN x 1, Giga LAN x 1
  • ACC Ignition Delay On/Off
  • Military Standard Vibration and Shock
  • E-Mark Certified
  • Additional LAN x 8 (By request)
應用案例
產品介紹

作為AAEON最新的AI系統，由NVIDIA® Jetson AGX Orin™模組驅動，BOXER-8645AI在嵌入式技術領域中領先一步。這款系統具備堅固的特性，適合於車輛內安裝，並利用最新的影像處理技術來建立更有效、先進和前瞻性的自動化移動機器人(AMR)和車載解決方案。BOXER-8645AI搭配AAEON合作夥伴e-con Systems™的NileCAM25全高清全局快門GMSL2彩色攝影機，提供更高質量的影像采集，從而發揮NVIDIA® Jetson AGX Orin™的AI性能。

產品諮詢

作為AAEON最新搭載NVIDIA® Jetson AGX Orin™模組的AI系統，BOXER-8645AI在嵌入式技術中展示了先驅性。它具備堅固的設計特性，適合於車輛內安裝，並採用最新的影像處理技術，以建立更有效、先進和前瞻性的自動化移動機器人(AMR)和車輛解決方案。BOXER-8645AI搭配AAEON的合作夥伴e-con Systems™提供的NileCAM25全高清全局快門GMSL2彩色攝影機，提供高質量的影像采集，以發揮NVIDIA® Jetson AGX Orin™的AI性能。

線上商店
產品規格
BOXER-8645AI

System

AI Accelerator NVIDIA® Jetson AGX Orin™
CPU

AGX Orin 32GB: 8-core Arm® Cortex®-A78AE CPU
AGX Orin 64GB: 12-core Arm® Cortex®-A78AE CPU

System Memory

32GB LPDDR5
64GB LPDDR5

Storage Device

64GB eMMC 5.1 x 1
M.2 2280 M-Key x 1 (NVMe)
2.5” SATA x 2

Display Interface HDMI 2.0 x 1 (Type-A)
Ethernet

RJ-45 for 10G LAN x 1
RJ-45 for Giga LAN x 1
Additional LAN x 8 (By request)

I/O

GMSL2 with FAKRA x 8
USB 3.2 Gen 2 x 4 (Type-A)
Micro USB x 1 for OS Flash
Line-Out x 1
DB-9 x 1 for Isolated CANBus x 2
DB-9 x 2 for RS-232 (Rx/Tx/CTS/RTS)/RS-485 x 2
DB-9 x 1 for DIO x 8
Switch x 1 for Ignition Delay On/Off
3-pin Terminal Block x 1 for Power Input
Power Button x 1
Recovery Button x 1
Antenna Hole x 7
TPM Support
GNSS Support
9-Axis Sensor Support

Expansion

M.2 2230 E-Key x 1 (Wifi/BT)
M.2 3052 B-Key x 1 (LTE)
M.2 2280 M-Key x 1 (NVMe)
2.5” SATA x 2
SIM Slot x 2
MicroSD Slot x 1

Indicator Power LED x 1
OS Support

Linux (NVIDIA JetPack™ 5.0 and above)

Power Supply

Power Requirement

3-pin Terminal Block x 1 for 9V ~ 36V
ACC Ignition Delay On/Off

Mechanical

Mounting Wall mount (default)
Dimensions (W x D x H) 11.26” x 7.95” x 3.54” (286mm x 202mm x 90mm)
Gross Weight 11 lb. (5Kg)
Net Weight 13 lb. (5.9Kg)

Environmental

Operating Temperature -13°F ~ 149°F (-25°C ~ 65°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration

MIL-STD-810G, 514.6C Procedure 1, Category 4 Trucker/Semitrailer on US
highway (Figure 514.6C-1-Category 4-Common carrier)

Anti-Shock MIL-STD-810G, Method 516.6, Procedure I, flight vehicle equipment
Certification E-Mark, CE/FCC Class A
