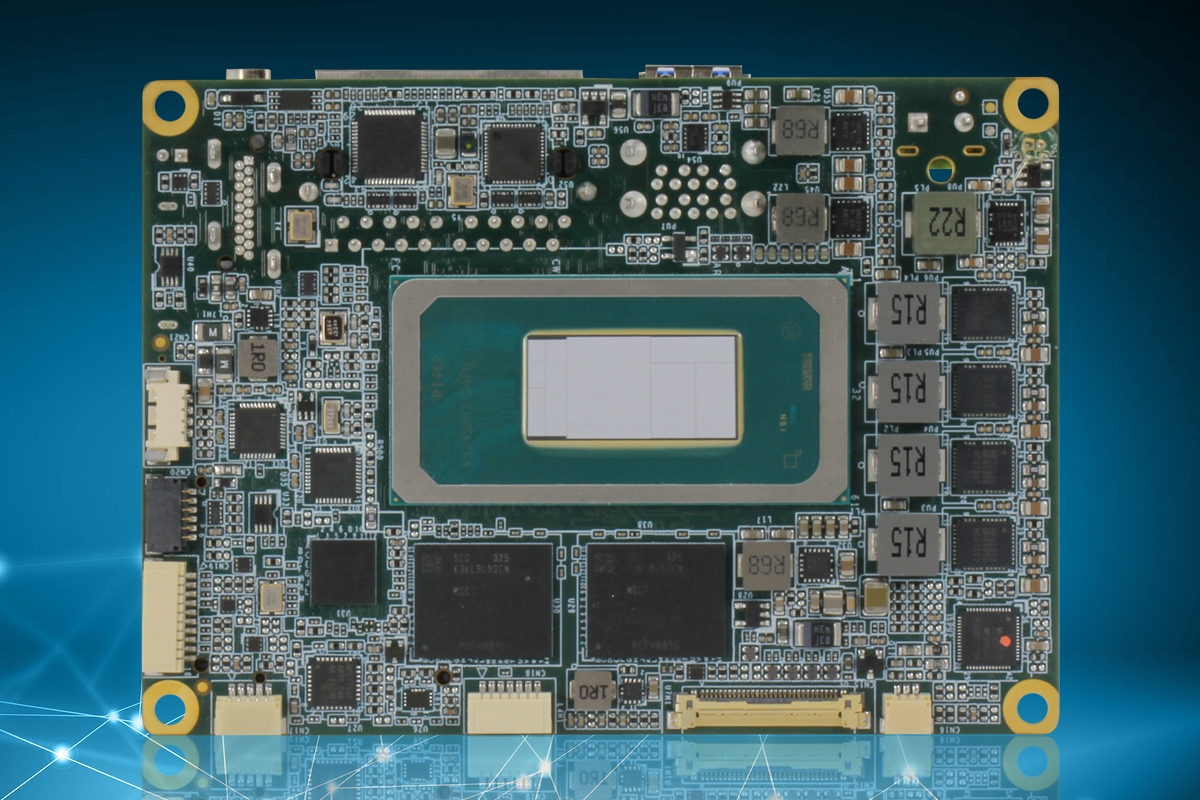

PICO-MTU4
Pico-ITX Board with Intel® Core™ Ultra 7/Ultra 5 Processors
功能特性
- Intel® Core™ Ultra 7/Ultra 5 Processor SoC
- Onboard LPDDR5, up to 32GB
- 2.5GbE + 1GbE
- HDMI 1.4 + eDP 1.4
- M.2 2280 M-Key x 1 (PCIe 4.0 [x4]/SATA)
- M.2 2230 E-Key x 1 (PCIe 4.0 [x1] + USB 2.0)
- USB 3.2 Gen 2 x 2 ports + USB 2.0 x 2
- RS-232/422/485 x 2
- TPM, GPIO 4-bit, SATA 6.0 Gb/s x 1
- SMBus/I2C (Default SMBus)
精密的結構設計
透過最佳的元件配置和專用散熱片,PICO-MTU4 具備卓越的寬溫範圍,可承受 -20°C 到 70°C。此外,該主板的先進算圖能力、高 AI 工作負載處理能力以及 Wi-Fi 6 支援,增強了 PICO-MTU4 成為道路監控系統的理想核心組件,尤其是在需要即時數據處理和高效 AI 工作負載管理的應用場景。
高頻寬的穩定通訊
PICO-MTU4 採用 LPDDR5x 系統記憶體並提供多樣化的介面選擇。雙 LAN 和 USB 3.2 Gen 2 接口可支援各種相機和感測器,而板載內部接頭則提供多種串列介面,適用於工業協定,如雙 COM 接口(RS-232/422/485)、4 位元GPIO和 SMBus。這種配置使 PICO-MTU4 成為 SCADA、MES 和系統監控設備的理想基礎平台。
System | |
Form Factor | PICO-ITX |
CPU | Intel® Core™ Ultra 7 Processor 165U (2PC+10EC/14T, P-core 1.70 GHz, E-core |
Chipset | Integrated with Intel® SoC |
Memory Type | Single-Channel LPDDR5 6400, up to 32GB |
BIOS | UEFI |
Wake On LAN | Yes |
Watchdog Timer | 255 Levels |
Security | TPM 2.0 |
RTC Battery | Lithium Battery 3V/240mAh |
Dimension | 3.94“ x 2.84“ (100mm x 72mm) |
Gross Weight | 0.18 lbs (0.08 kg) |
OS Support | Windows 10 (64bit) |
Power | |
Power Requirement | 12V only |
Power Supply Type | AT/ATX |
Connector | Phoenix 2-pin Connector (Default) |
Power Consumption | Intel® Core™ Ultra 7 Processor 165U, DDR5 32GB x1, 2.94A@+12V (Typical) |
Display | |
Controller | Intel® Graphics |
LVDS/eDP | eDP 1.4 x 1 |
Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
Multiple Display | Up to 2 Simultaneous Displays |
Audio | |
Codec | — |
Audio Interface | — |
Speaker | — |

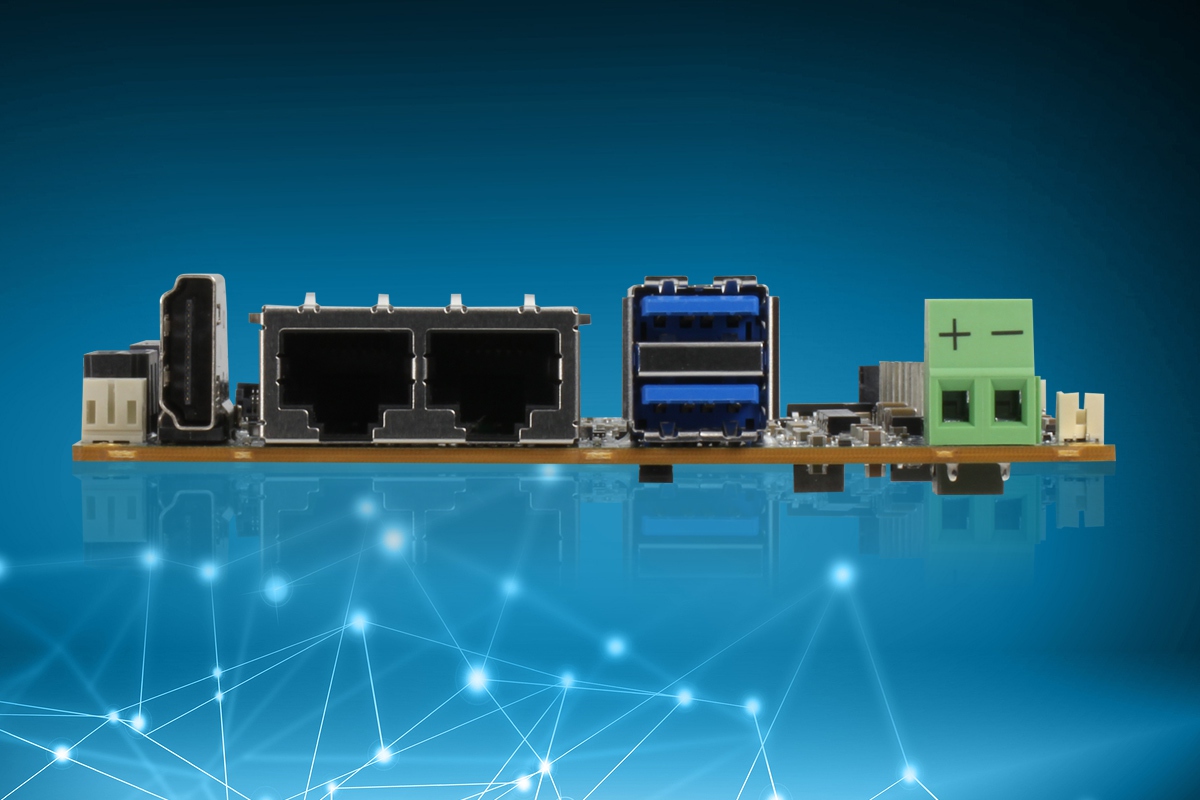

External I/O | |
Ethernet | Intel® Ethernet Controller I226 2.5GbE, RJ-45 x 1 |
USB | USB 3.2 Gen 2 x 2 ports |
Serial Port | — |
Video | HDMI 1.4 x 1 |
Internal I/O | |
USB | USB 2.0 x 2 |
Serial Port | COM 1 ~ 2 (RS-232/422/485, supports 5V/12V/RI) |
Video | — |
SATA | SATA 6Gb/s x 1 |
Audio | — |
DIO/GPIO | GPIO 4-bit |
SMBus/I2C | I2C/SMBus (Default: SMBus) |
Fan | 4pins Smart Fan x1 |
Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
Others | — |
Expansion | |
Mini PCIe/mSATA | — |
M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x4] / SATA, Default: PCIe [x4], select by BOM) |
Others | — |
Environment & Certification | |
Operating Temp | -4°F ~ 158°F (-20°C ~ 70°C) |
Storage Temp | -40°F ~ 185°F (-40°C ~ 85°C) |
Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
MTBF (Hours) | 1,063,716 |
EMC | CE/FCC Class A |
