AI CORE XM 2280
AI Edge Computing Module with Intel® Movidius™ Myriad™ X VPU
- Intel® Movidius™ Myriad™ X VPU
- 2x MYDX on M.2 2280 B+M key
- Intel® Vision Accelerator Design SW SDK
- Supported Framework: TensorFlow, Caffe, MXNET
- Ubuntu 16.04, Windows® 10

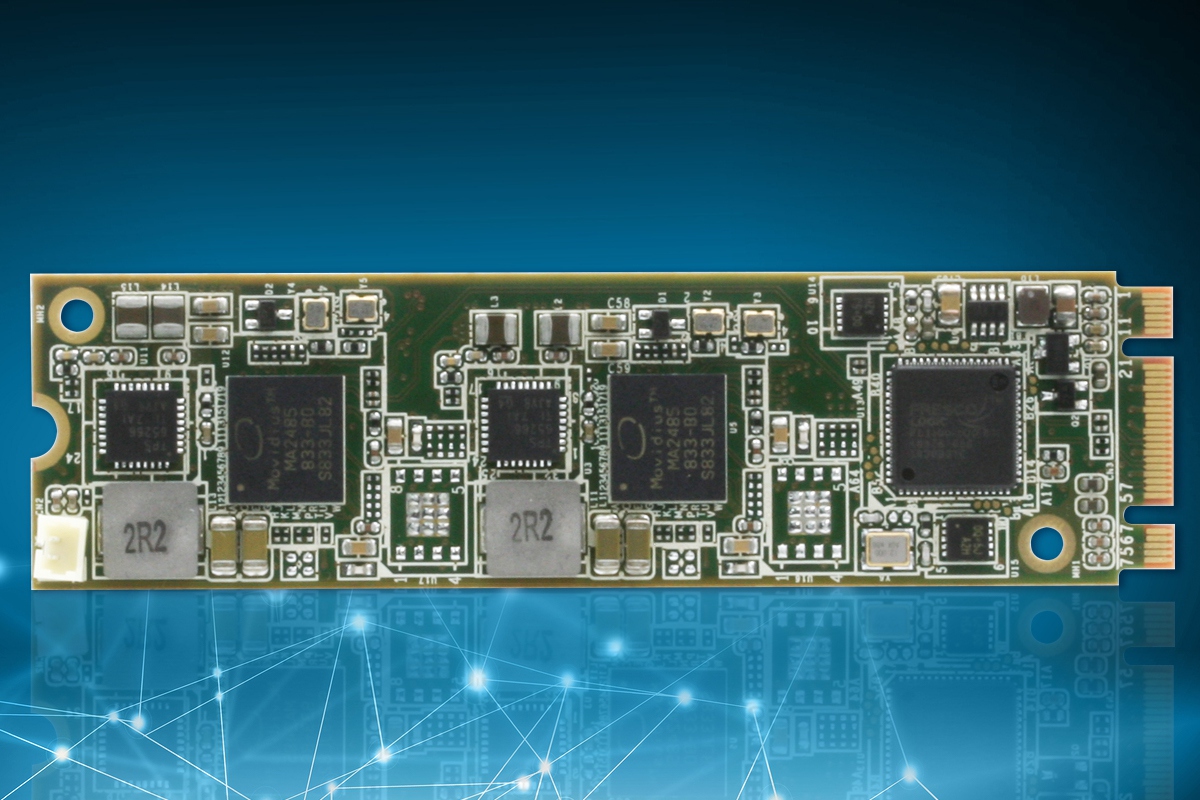

he AI Core XM2280 is a compact m.2 AI module powered by Intel® Movidius™ Myriad™ X. It features two Intel® Movidius™ Myriad™ X VPUs, which together are capable of up to 200 fps (160 fps typical) and over 2 trillion floating point operations per second as a dedicated neural network accelerator. The AI Core XM2280 is compatible with Intel® Distribution of OpenVINO toolkit and supports Tensorflow and Caffe frameworks.
The Intel® Movidius™ Myriad™ X is built to have high performance with low power consumption. Together with the AI Core XM2280’s compact m.2 22x80mm size, the AI Core XM2280 is perfect for applications that are mobile or rely on battery power, such as drones or remote camera sensors.
|IC||Intel® Movidius™ Myriad™ X VPU x 2, MA2485|
|Support frame work||Tensorflow, Caffe, MXNET|
|Form Factor||M.2 2280 B+M KEY|
|Dimension||3.15" x 0.87" (80 mm x 22 mm)|
|Certification||CE/FCC Class A|
|Operating Temperature||32°F ~ 122°F (0°C ~ 50°C)|
|Operating Humidity||10% ~ 80% relative humidity, non-condensing|
