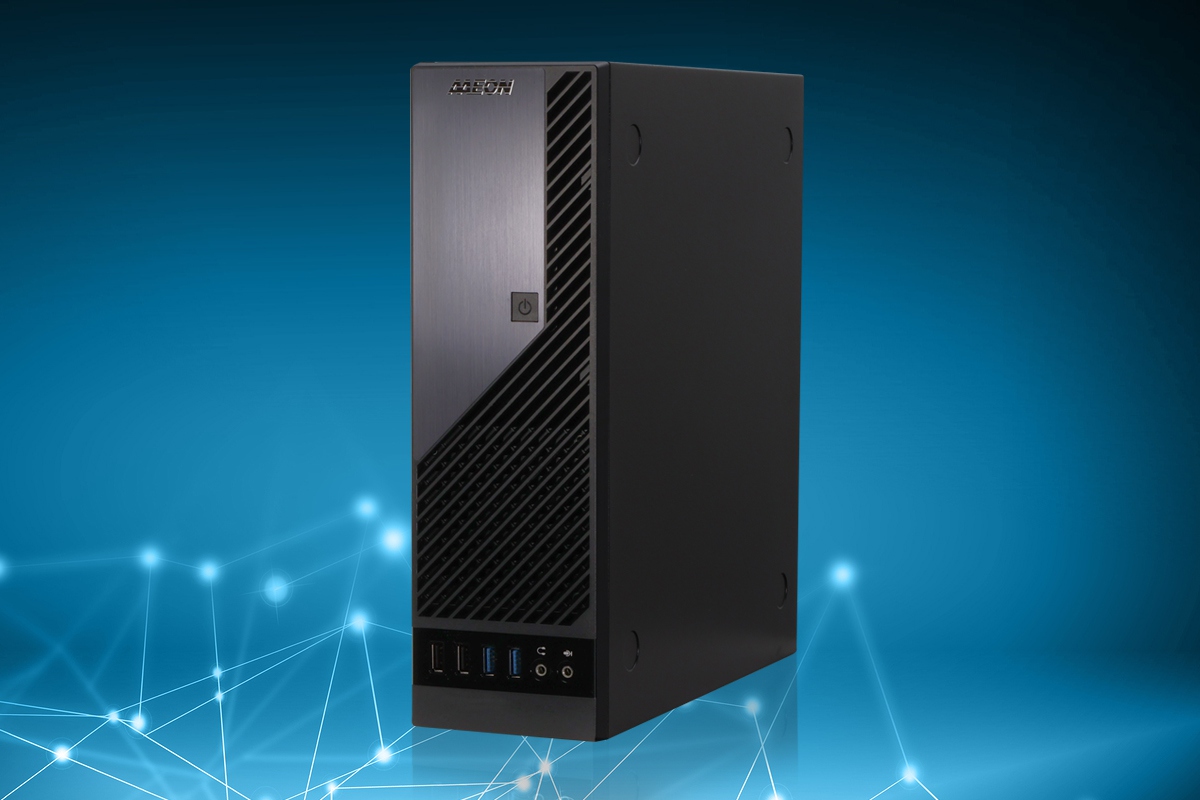

MAXER-5100
AI Inference Server, Tower, 12th/13th/14th Gen Intel® Core™ CPU
Features
- Supports NVIDIA RTX™ 2000 Ada GPU x 2
- 12/13th/14th Gen Intel® Core™ LGA1700 Socket Processors
- M.2 2242/2280 M-Key x 1
- SATA Drive Bay x 2
- Onboard TPM 2.0
AAEON’s MAXER-5100 is the world’s smallest industrial-grade AI inference server, uniquely equipped with 14th Gen Intel® Core™ processing, two integrated NVIDIA RTX™ 2000 Ada GPUs, and a proprietary edge device management software framework.
From AI model fine-tuning to centralized edge server management applications, no system is capable of matching the 360° functionality of the MAXER-5100 with such a small footprint.

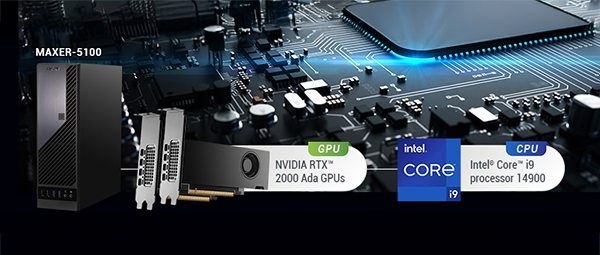

The MAXER-5100 pushes the boundaries of performance with two integrated NVIDIA RTX™ 2000 Ada GPUs combined with the 24 core, 32 thread Intel® Core™ i9 processor 14900. This exceptional power grants organizations efficient workload management, with a hybrid-power CPU architecture for dataset preprocessing alongside dedicated inference capabilities for real-time data analytics with parallel AI algorithm execution, making it possible to scale multi-stream video analysis applications across public safety, automated optical inspection, and even on-site deep learning model training.

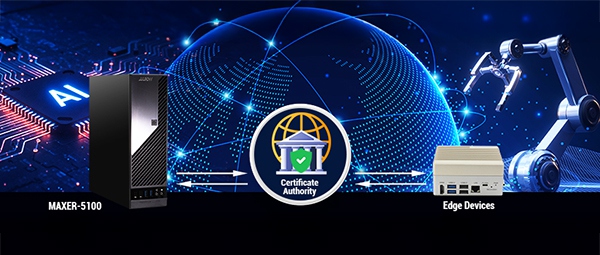

The MAXER-5100’s Certificate Authority (CA) support provides robust authentication protocols for server-to-edge networking, as well as encrypted data transmission through its zero-trust secure tunnel, making it a bulletproof option for running edge nodes in the smart infrastructure, healthcare, and advanced manufacturing sectors. As a result, the MAXER-5100 provides a robust framework through which to implement over-the-air updates and remote diagnostics across multiple edge devices within an application ecosystem, streamlining large-scale deployments.
Even with its compact 8L chassis, the MAXER-5100 delivers the airflow and heat management required to operate at full capacity thanks to a custom-designed and rigorously tested thermal solution comprised of CPU and system fans engineered for minimal noise. This not only allows for reliable continuous operation, but makes for a it possible for the desktop-sized system to handle the robust processing capabilities of up to 65W 14th Generation Intel® Core™ CPUs alongside two integrated NVIDIA RTX™ 2000 Ada GPUs within space-constrained settings.

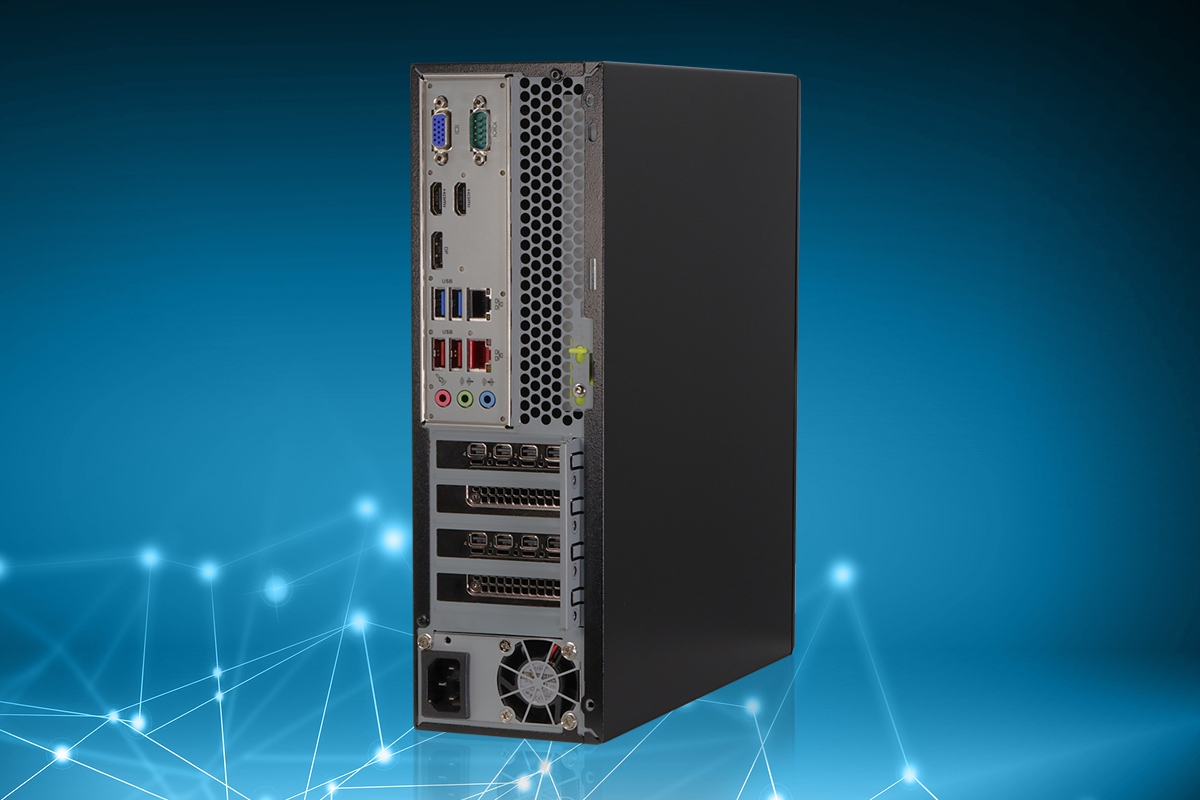

System | |
| CPU | 12th/13th/14th Generation Intel® Core™ LGA1700 Socket Processors |
| GPU | NVIDIA RTX™ 2000 Ada GPU x 2 (Selected SKUs) |
| Chipset | Intel® Q670 Chipset |
| System Memory | DDR5 4800MHz DIMM x 4, Up to 128GB |
| Display Interface | VGA x 1 HDMI 2.0 x 2 DP 1.4 x 1 |
| Storage Device | 2.5” SSD x 1 3.5” HDD x 1 |
| Ethernet | RJ-45, 1GbE x 1 RJ-45, 2.5GbE x 1 |
| USB | USB 2.0 x 2 USB 3.2 x 6 |
| Serial Port | DB-9 for COM Port (RS-232/422/485 & RI/5V/12V) |
| Audio | Audio Jack x 5 (Line-in, Mic-in x 2, Line-out x 2) |
| Expansion | PCIe Gen 4 [x16] x 1 PCIe Gen 4 [x8] x 1 PCIe Gen 3 [x1] x 1 PCIe Gen 3 [x4] x 1 M.2 2230 E-Key x 1 M.2 2280/2242 M-Key x 1 (PCIe Gen 4 [x4], SATA 6Gb/s) |
| TPM | TPM 2.0 Onboard |
| Indicator | — |
| OS support | Windows® 10 64-bit |
| Drive Bay | 2.5” SATA 6Gb/s Drive Bay x 1 3.5” SATA 6Gb/s Drive Bay x 1 |
| Front Control | — |
Power Supply | |
| Power Requirement | ATX 450W AC/DC Power supply |
Mechanical | |
| Mounting | Wall mount |

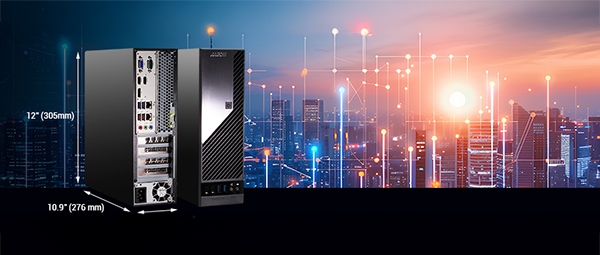

| Dimensions (W x H x D) | 12” x 3.7” x 10.9” (305mm x 95mm x 276mm) |
| Gross Weight | 12 lb. (5.6Kg) |
| Net Weight | 11 lb. (5Kg) |
Environmental | |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C), according to IEC68-2 with 0.5 m/s AirFlow |
| Storage Temperature | -40˚F ~ 185˚F (-25˚C ~ 85˚C) |
| Storage Humidity | 5 ~ 95% @ 40˚C, non-condensing |
| Certification | CE/FCC class A |
