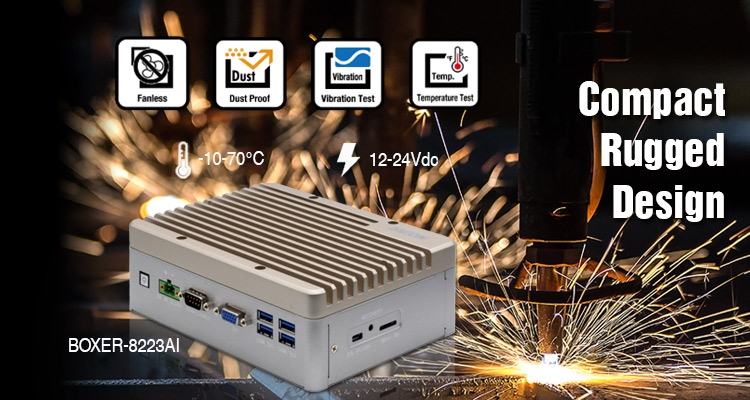

BOXER-8223AI
AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Nano™
Features
- NVIDIA® Jetson Nano™
- 4GB LPDDR4
- 16GB eMMC + Micro SD Card Slot
- PoE/PSE GbE LAN x 2
- HDMI Input
- Digital I/O 13-channel
- Full-size Mini Card x 1 w/ SIM Slot
- 12~24Vdc Power Input
The BOXER-8223AI combines the efficient NVIDIA® Jetson Nano™ with the flexibility of PoE PSE support and HDMI input. Specialized for AI edge computing, the Jetson Nano utilizes the quad-core ARM® Cortex®-A57 MPCore processor with NVIDIA Maxwell™ GPU architecture featuring 128 NVIDIA CUDA® cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time.
The BOXER-8223AI offers greater flexibility to meet the needs of a wide range of applications. Storage comes thanks to 16GB of onboard eMMC storage, which can be expanded using a microSD card. The BOXER-8223AI features two PoE PSE ports (802.3at) delivering up to 60W total power.
Additionally, the BOXER-8223AI features HDMI input, allowing developers and users to quickly add AI powered visual analysis to a broad range of applications from NVR surveillance systems to security checkpoint X-ray scanners and medical devices.
The BOXER-8233AI also offers expandability thanks to its Mini Card slot and M.2 2230 slot, allowing users and developers to quickly add on functionality such as Wi-Fi and LTE network support. The BOXER-8223AI provides a flexible I/O loadout with four USB3.2 Gen 2 ports, COM and DIO ports, designed to connect with a wide range and number of sensors, control devices and more.
The BOXER-8223AI is powered by the NVIDIA Jetson NANO, providing AI Edge Computing performance to power a wide range of applications including defect inspection and intelligent security.
The BOXER-8223AI features two PoE PSE (Power Supply Equipment) 802.3at ports, supplying a total of 45W to power connected PoE devices including cameras or edge systems with PoE PD ports (Powered Device).
The BOXER-8223 features an HDMI input to quickly add vision-based analysis to a range of applications from airport security X-ray scanners to medical devices for AI-aided diagnosis.
The BOXER-8223 is designed with a flexible I/O loadout, including four USB3.2 Gen 2 ports, COM and DIO ports, designed to connect with a wide range and number of sensors, control devices and more.
System | |
| AI Accelerator | NVIDIA® Jetson Nano™ |
| CPU | Quad Core ARM® Cortex®-A57 MPCore Proccessor |
| System Memory | 4GB LPDDR4 |
| Storage Device | 16GB eMMC + Micro SD Card Slot |
| Display Interface | HDMI 2.0 (Type-A) x 1 (Output) |
| Ethernet | PoE/PSE LAN x 2 (IEEE 802.3at) |
| I/O | USB 3.2 Gen 1 (Type-A) x 4 |
| Expansion | Mini Card x 1 w/ SIM Slot |
| Indicator | Power LED x 1 |
| OS Support | NVIDIA Jetpack™ 4.5 or above |
Power Supply | |
| Power Requirement | DC 12V~24V with 2-pin terminal block ATX mode |
Mechanical | |
| Mounting | Wall mount kit (default) |
| Dimensions (W x D x H) | 7.09” x 5.35” x 2.41” (180.0mm x 136.0mm x 61.1mm) |
| Gross Weight | 4.63 lb. (2.1Kg) |
| Net Weight | 2.87 lb. (1.3Kg) |
Environmental | |
| Operating Temperature | 14°F ~ 158°F (-10°C ~ 70°C), with 0.5m/s airflow |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | Random, 3 Grms, 5~500Hz |
| Anti-Shock | 50G peak acceleration (11 msec. duration,eMMC) |
| Certification | CE/FCC Class A/UKCA |
