Embedded AI System with NVIDIA® Jetson Orin Nano™

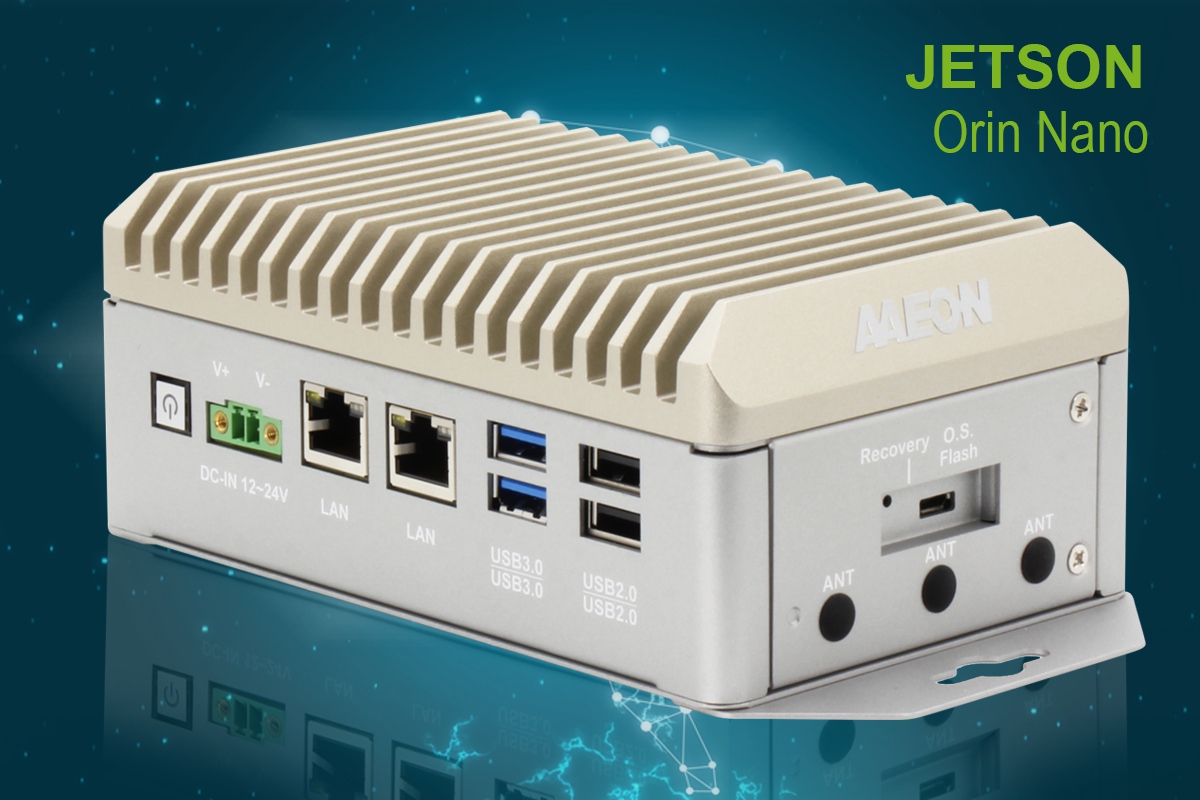

BOXER-8622AI

AI@Edge Compact Fanless Embedded AI System with NVIDIA® Jetson Orin Nano™

Features

  • NVIDIA® Jetson Orin Nano™
  • 4GB/8GB LPDDR5
  • Supports M.2 E-Key x 1, M.2 B-Key x 1, M.2 M-Key x 1
  • Supports DB-9 x 1 for CANBus
  • Supports GbE LAN x 2
Overview

With flexible SSD-based storage and LPDDR5 memory, the BOXER-8622AI enhances the potential offered by a high-speed I/O.

Request a Quote

The system boasts multiple serial ports, providing CANBus and RS-232/422/485 functionality, while dual LAN and four USB Type-A ports offer peripheral device integration for exceptional data transmittance in operation.

Specifications
BOXER-8622AI

System

AI Accelerator NVIDIA® Jetson Orin Nano™
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
System Memory 4GB/8GB LPDDR5
Storage Device M.2 2280 M-Key x 1
Display Interface HDMI 1.4 (Type-A) x 1
Ethernet RJ-45 x 2 for 10/100/1000 Base-T
I/O

USB 3.2 Gen 2 (Type-A) x 2
USB 2.0 (Type-A) x 2
Micro USB x 1 for OS Flash
DB-9 x 1 for CANbus
DB-9 x 1 for RS-232/422/485
DB-15 x 1 for 13-bit DIO
Power ON/OFF switch x 1
Recovery button x 1
Antenna Hole x 6

Expansion

M.2 2230 E-Key x 1 (Wi-Fi/Bluetooth)
M.2 3042/3052 B-Key x 1 (4G/5G)
M.2 2280 M-Key x 1

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack™ 5.0 and up)

Power Supply

Power Requirement DC-in 12-24V with 2-pin terminal block

Mechanical

Mounting Wall mount kit
Dimensions (W x D x H) 5.98” x 3.78” x 2.42” (152mm x 96 mm x 61.5mm)
Gross Weight 3.97lb (1.8kg)
Net Weight 2.65lb (1.2kg)

Environmental

Operating Temperature -5°F ~ 149°F (-15°C ~ 65°C with 0.5 m/s airflow)
Storage Temperature -40°F ~ 176°F (-40°C ~ 85°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration 3.5Grm / 5~500Hz
Anti-Shock 50G peak acceleration
Certification CE / FCC class A
Downloads
Datasheet
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
