Embedded board with NVIDIA® Jetson Orin™ NX

BOXER-8654AI-KIT

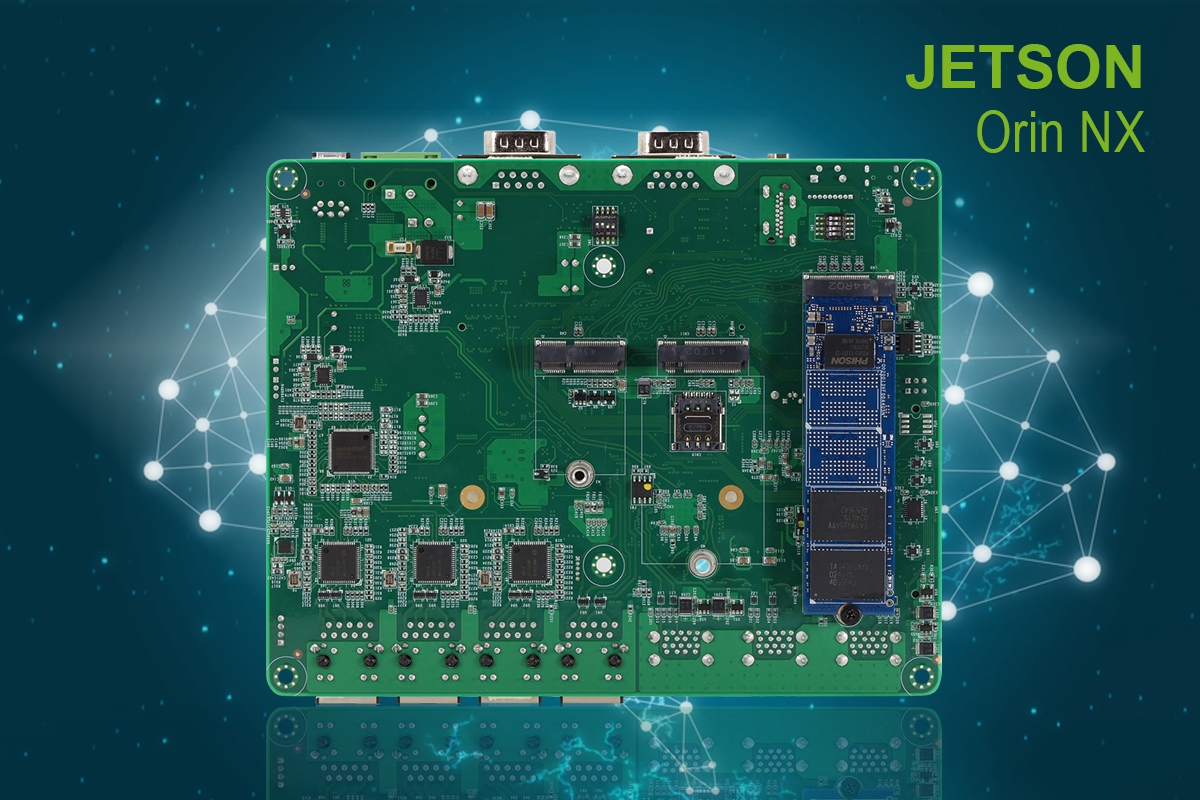

Edge AI Embedded board with NVIDIA® Jetson Orin™ NX

Features

  • NVIDIA® Jetson Orin™ NX
  • MIPI connector x 2
  • M.2 2230 E-Key x 1, M.2 2280 M-Key x 1, M.2 3052 B-Key x 1
  • 40-pin Header compliant with NVIDIA Jetson Orin Nano Developer Kit
  • PoE Connecter, FAN connecter
  • 12V ~ 24V Wide Power DC Input
  • TPM 2.0 Support (by Jumper select)
Overview

The BOXER-8654AI by AAEON is an advanced embedded system powered by the NVIDIA® Jetson Orin™ platform, designed to excel in edge AI applications. With exceptional AI performance, it supports a wide range of industries, including smart manufacturing and smart cities. Its rugged fanless design ensures reliable operation in challenging environments, making it a trusted choice for mission-critical deployments.

Request a Quote

Equipped with versatile I/O options such as multiple USB ports, serial interfaces, and network connectivity, the BOXER-8654AI seamlessly integrates with diverse devices and sensors. Its compact form factor and flexible mounting options allow easy installation in confined spaces. Supporting various AI frameworks, it accelerates the development and deployment of intelligent solutions for real-time data processing and decision-making.

Shop Online

More Than Just a Carrier Board

A carrier board with a difference, the BOXER-8654AI-KIT is equipped with a full-function I/O, including six USB 3.2 Gen 2 ports, an Out-of-Band (OOB) management box header, and four LAN ports with optional power boards for PoE to combine the delivery of both power and data through a single interface. Further, the kit offers dual MIPI CSI connectors able to accommodate four MIPI cameras for high-bandwidth, low-latency image acquisition.

Jetpack Preinstallation for Streamlined Development

A carrier board with a difference, the BOXER-8654AI-KIT is equipped with a full-function I/O, including six USB 3.2 Gen 2 ports, an Out-of-Band (OOB) management box header, and four LAN ports with optional power boards for PoE to combine the delivery of both power and data through a single interface. Further, the kit offers dual MIPI CSI connectors able to accommodate four MIPI cameras for high-bandwidth, low-latency image acquisition.

Multi-Expansion for Wi-Fi, 5G, & NVMe

M.2 E and B-key slots allow for the installation of Wi-Fi and 5G modules, with the latter also offering an onboard SIM for cellular data transmission. Meanwhile, the BOXER-8654AI-KIT’s M.2 M-Key slot provides a home for high-performance NVMe SSD storage, more than capable of handling the large storage capacities and fast read/write speeds required when building your AI solution.

40-pin Header, Endless Possibilities

An NVIDIA Jetson-compatible 40-pin header opens the door to a wealth of flexible, customizable interfaces dedicated to building embedded solutions capable of operating on the edge. The kit’s 40-pin header grants I2C, SPI, UART, and other serial interfaces to compliment its onboard DB-9 ports, which bring RS-232(RX/TX/GND)/422/485 and CANBus into the mix.
Specifications
BOXER-8654AI-KIT

System

AI Accelerator NVIDIA® Jetson Orin™ NX
CPU Orin NX 16GB: 8-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU Orin NX 8GB: 6-core Arm® Cortex®-A78AE ARMv8.2 64-bit CPU
System Memory 16GB LPDDR5 8GB LPDDR5
Storage Device M.2 M-Key 2280 x 1 (NVMe)
Display Interface HDMI Type A for HDMI 1.4 x 1
Ethernet RJ-45 x 4 for GbE LAN (optional: power module for PoE (25.6W each port
I/O

MIPI Connector x 2 (4 lanes for each MIPI connector, Default IMX219)

DB-9 x 1 for RS-232(RX/TX/GND)/422/485

DB-9 x 1 for CANBus

USB Type A x 6 for USB 3.2 Gen 2 Micro USB for image flash x 1 Power Button with LED Indicator x 1

2-pin Phoenix Type x 1 for Power Input Recovery Button x 1

40-pin Header compliant with NVIDIA Jetson Orin Nano Developer Kit Pin Header x 1 for RS/232/422/485 by jump select UART to 40-pin Box Header x 1 for OOB

SATA Connector x 1

SATA power Connector x 1

Expansion

M.2 2230 E-Key x 1

M.2 2242/3042/3052 B-Key x 1 (SIM onboard)

M.2 2280 M-Key x 1

Indicator Power LED x 1
OS Support Linux (NVIDIA Jetpack™ 6.0 and above)

Power Supply

Power Requirement 12V ~ 24V DC in with 2-pin Terminal Block x 1

Mechanical

Mounting —
Dimensions (W x D x H) 6.53’’ x 5.24’’ (166mm x 133mm)
Gross Weight 0.79 lbs (0.36 Kg)
Net Weight 0.42 lbs (0.19 Kg)

Environmental

Operating Temperature -13°F ~ 158°F (-25°C ~ 70°C) w/ Fan Kit, according to IEC60068-2 with 0.5 m/s AirFlow
Storage Temperature -40°F ~ 185°F (-40°C ~ 85°C)
Storage Humidity 5 ~ 95% @ 40°C, non-condensing
Anti-Vibration —
Anti-Shock —
Certification CE / FCC class A
Downloads
Datasheet
Manual
For packing list, detailed specifications and other product information, download the Datasheet or User Manual.
