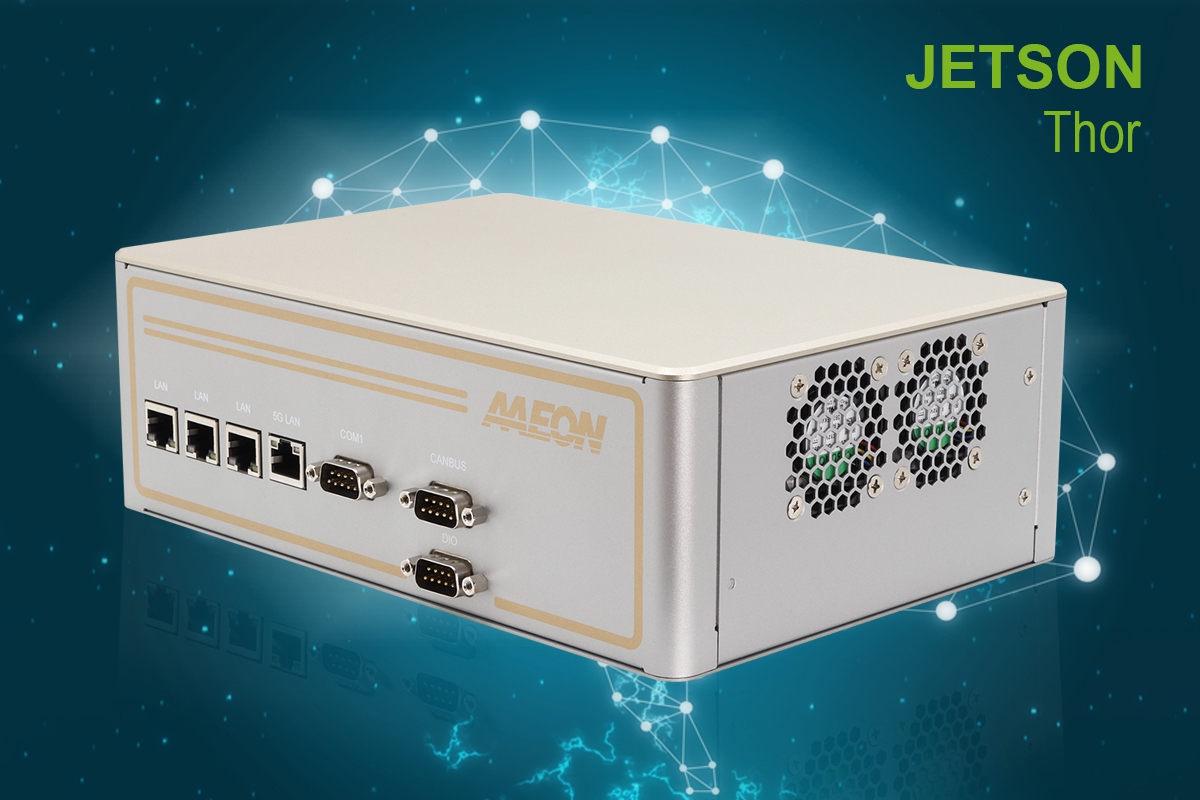

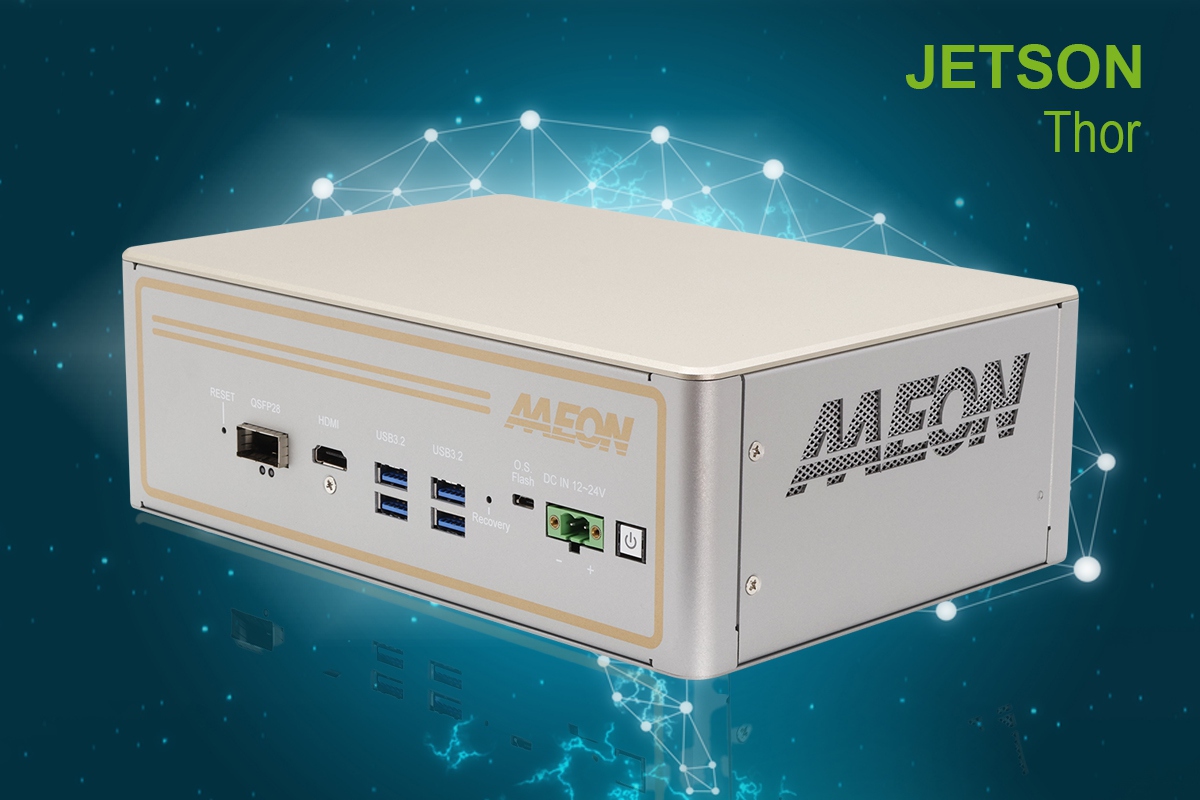

BOXER-8741AI
AI@Edge Embedded Box PC Powered by NVIDIA® Jetson Thor™
Features
- NVIDIA® Jetson T5000™
- QSFP28 x 1 for 25GbE x 4
- 5GbE LAN x 4
- RS-232/485, CAN FD, DIO/GPIO
- M.2 expansion for 5G, Wi-Fi, and NVMe SSD
- MIL-STD-810H vibration/shock
Empower the next generation of AI at the edge with the BOXER-8741AI, AAEON’s advanced AI@Edge Box PC powered by the NVIDIA® Jetson™ T5000 module. Featuring exceptional AI performance driven by NVIDIA’s Blackwell architecture GPU, the BOXER-8741AI combines scalability, high-speed interfaces, and compact, rugged hardware to support demanding edge AI workloads such as humanoid robotics and edge server deployments.
Designed as a purpose-built robotics platform, the BOXER-8741AI supports multiple real-time vision sensors, control modules, and actuators. With its rich I/O, flexible ruggedized enclosure options, and low-latency AI processing, the system equips developers with everything needed to accelerate the development of next-generation humanoid robots and intelligent edge applications.
System | |
| AI Accelerator | NVIDIA® Jetson T5000™ (2560-core NVIDIA Blackwell architecture GPU with fifth-gen Tensor Cores) |
| CPU | 14-core Arm® Neoverse®-V3AE 64-bit CPU |
| System Memory | 128GB 256-bit LPDDR5X |
| Storage Device | M.2 2280 M-Key x 1 |
| Display Interface | HDMI 1.4a x 1 |
| Ethernet | QSFP28 x 1 for 4 x 25GbE (4 x Independent MAC, aggregate up to 100Gbps) RJ-45 x 4 for 5GbE |
| I/O | DB-9 x 1 for CAN FD x 2 DB-9 x 1 for RS-232/485 x 1 DB-9 x 1 for GPIO 8-bit USB 3.2 Gen 2 (Type-A) x 4 Micro USB x 1 for OS Flash Reset Button x 1 |
| Expansion | M.2 2280 M-Key x 1 for NVMe M.2 3052 B-Key x 1 for 4G/5G/LTE M.2 2230 E-Key x 1 for WiFi/BT |
| Indicator | System LED x 1 |
| OS Support | NVIDIA JetPack™ 7.0 and above |
Power Supply | |
| Power Requirement | 2-pin Terminal Block x 1 for 12~24Vdc Power Input (pitch 5mm) |
Mechanical | |
| Mounting | Wallmount |
| Dimensions (W x D x H) | 9.4” x 6.4” x 3.1” (240mm x 164.8mm x 80.1mm) |
| Gross Weight | TBD |
| Net Weight | TBD |
Environmental | |
| Operating Temperature | -13°F~140°F (-25°C~60°C) according to IEC68-2-14 with 0.7 m/s AirFlow |
| Storage Temperature | -40°F~185°F (-40°C~85°C) |
| Storage Humidity | 5 ~ 95% @ 40C, non-condensing |
| Anti-Vibration | MIL-STD-810H |
| Anti-Shock | MIL-STD-810H |
| Certification | FCC/CE Class A |
