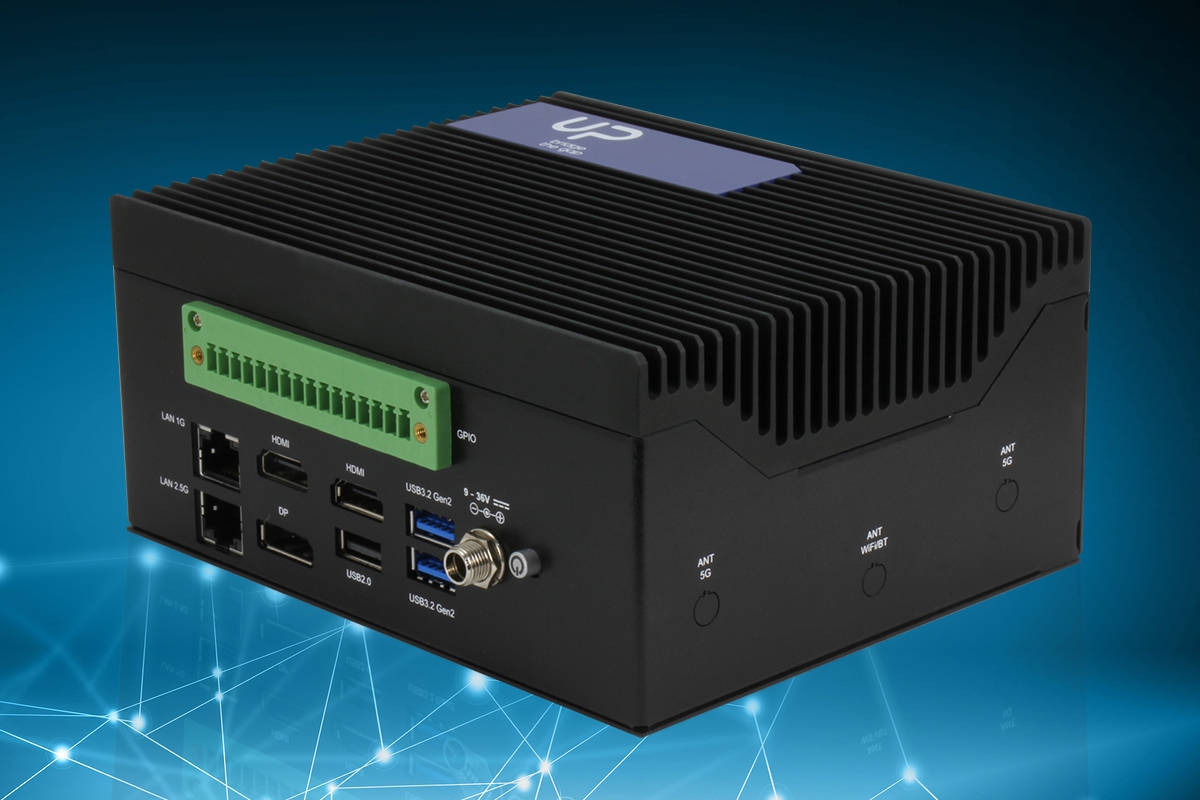

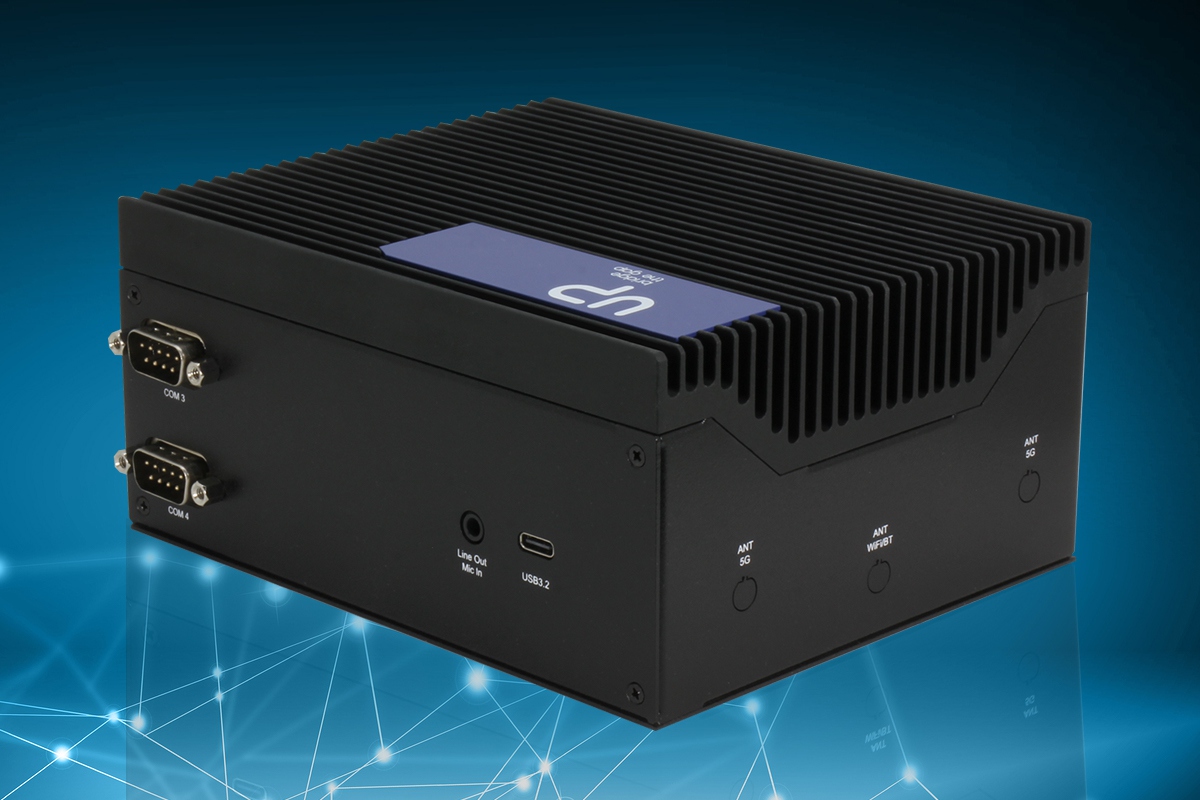

UP XTREME I14 EDGE
AI-ready system w. Intel Core Ultra Processor SoC
Features
- Onboard Dual Channel LPDDR5 6400, up to 64GB
- Up to 4 Simultaneous Displays
- M.2 2280 M-Key x 2, M.2 3052 B-Key x 1 (5G), M.2 2230 E-Key x 1 (Wi-Fi/BT)
- 2.5GbE x 1, GbE x 1
- USB 3.2 Gen 2 (Type A x 2, Type C x 1)
- Onboard TPM 2.0
- Wide DC Input 9-36V
The ultimate industrial Mini AI PC, the new UP Xtreme i14 Edge elevates development potential across industries, combining Intel® Core™ Ultra power-efficiency, faster communication interfaces, and Intel® Arc™ graphics technology into one compact system.
Streamline smart city initiatives, deploy cutting-edge computer vision, or accelerate automated processes with AI-driven insights, all with the most advanced UP Mini PC ever.
The Master Key to the Ultra-Smart City
The UP Xtreme i14 Edge harnesses high-speed data processing, native AI acceleration, and edge computing capabilities through the trifecta of its Intel® Core™ Ultra CPU, LPDDR5 system memory, and Intel® Arc™ graphics. The system can therefore handle real-time video processing from multiple peripherals while maintaining wireless connectivity with control centers through 5G and Wi-Fi support, making it ideal for bringing AI-assisted decision making to settings like parking lots, transport hubs, and commercial buildings.
Unlocking Retail’s Computer Vision Potential

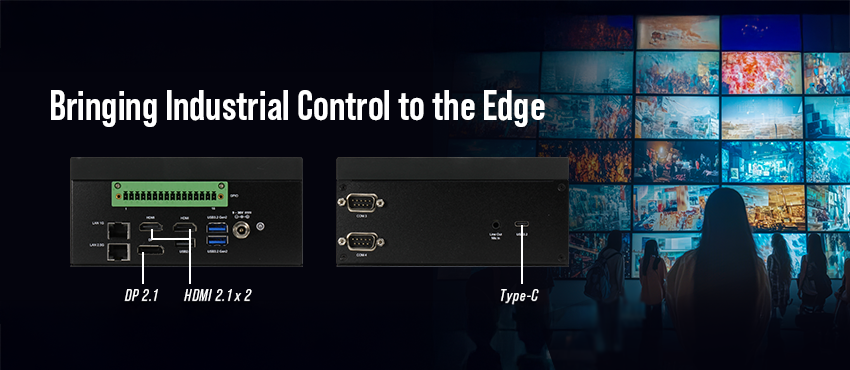

Dual HDMI 2.1 with Fixed Rate Link (FRL), DP 2.1, and DP 1.4 via USB Type-C grant the UP Xtreme i14 Edge high-resolution, real-time video output with which to channel its graphics capabilities. Further, the system hosts multiple USB interfaces for high-resolution camera installation alongside IP camera support through dual LAN ports, making it a practical device for foot traffic analysis and Digital Out-of-Home (DOOH) advertising in retail environments.
Bringing Industrial Control to the Edge
For industrial control solutions that go beyond the capabilities of traditional PLCs, the UP Xtreme i14 Edge combines the versatility of its industrial communication support with Ethernet supporting Time-Sensitive Networking (TSN). Sensor and actuator data can be transmitted faster to provide AI-driven insights, while instructions can be executed with minimal latency based on the platform’s GPIO, making the UP Xtreme i14 Edge an incredibly effective tool for the remote monitoring and control of industrial setups.
System | |
| CPU | Intel® Core™ Ultra 5 processor 125U (12M Cache, up to 4.30 GHz) Intel® Core™ Ultra 5 processor 125H (18M Cache, up to 4.50 GHz) Intel® Core™ Ultra 7 processor 155H (24M Cache, up to 4.80 GHz) Intel® Core™ Ultra 7 processor 165H (24M Cache, up to 5.00 GHz) |
| Memory | Up to 64GB onboard LPDDR5 (Dual-Channel) |
| Graphics | Intel® Arc™ graphics |
| Storage | M.2 2280 M-Key x 2 SATA 6Gb/s x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT) GbE x 1 (Intel® Ethernet Connection I219) |
| WIFI/BT | M.2 2230 E-key x 1 |
| Expansion Slot | 40-pin GPIO x 1 M.2 2230 E-Key x 1 (PCIe Gen 3 [x1], USB 2.0) M.2 2280 M-Key x 2 (PCIe Gen 4 [x4]) M.2 3052 B-Key x 1 (PCIe Gen 3 [x1], USB 3.2 Gen 2 [x1]) with Nano SIM slot (USB 3.0) SATA 6Gb/s x 1 |
| Security | Onboard TPM 2.0 |
| OS Support | Windows 10/11 (64bit) Ubuntu 22.04/Kernel 6.5 up |
I/O Placements | |
| USB | USB 2.0 x 2 (from 10 pin header x 1) USB 2.0 (Type-A) x 1 USB 3.2 Gen 2 (Type-A) x 2 USB 3.2 Gen 2 (Type-C) x 1 |
| Display Port | HDMI 2.1 x 2 DP 2.1 x 1 DP 1.4 via USB Type-C x 1 |
| Ethernet | 2.5GbE x 1 (via Intel® Ethernet Controller I226-IT), GbE x 1 (Intel® Ethernet Connection I219) |
| COM | RS-232/422/485 10-pin header x 2 |
| Audio | Audio Jack x 1 (Mic-in+Line-out) |
| GPIO | 16-pin terminal block connector x1 |
Power Supply | |
| Power requirement | 9-36V DC-in (Lockable plug) |
| Power supply type | AT/ATX (ATX as default) |
| Power Consumption(Typical) | 67-80W |
Mechanical | |
| Mounting | VESA Mount/Wall Mount(optional) |
| Dimensions (WxHxD) | 5.98” x 4.87” x 2.81” (152mm x 123.8mm x 71.5mm) |
| Net Weight | 2.95 lbs (1.34kg) |
| Gross Weight | 3.88 lbs (1.76kg) |
Environment | |
| Operating Temperature | 32°F ~ 140°F (0°C ~ 60°C), 0.5m/s airflow |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Temperature | -40˚F ~ 176˚F (-40˚C ~ 80˚C) |
| MTBF | 1,014,016 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
